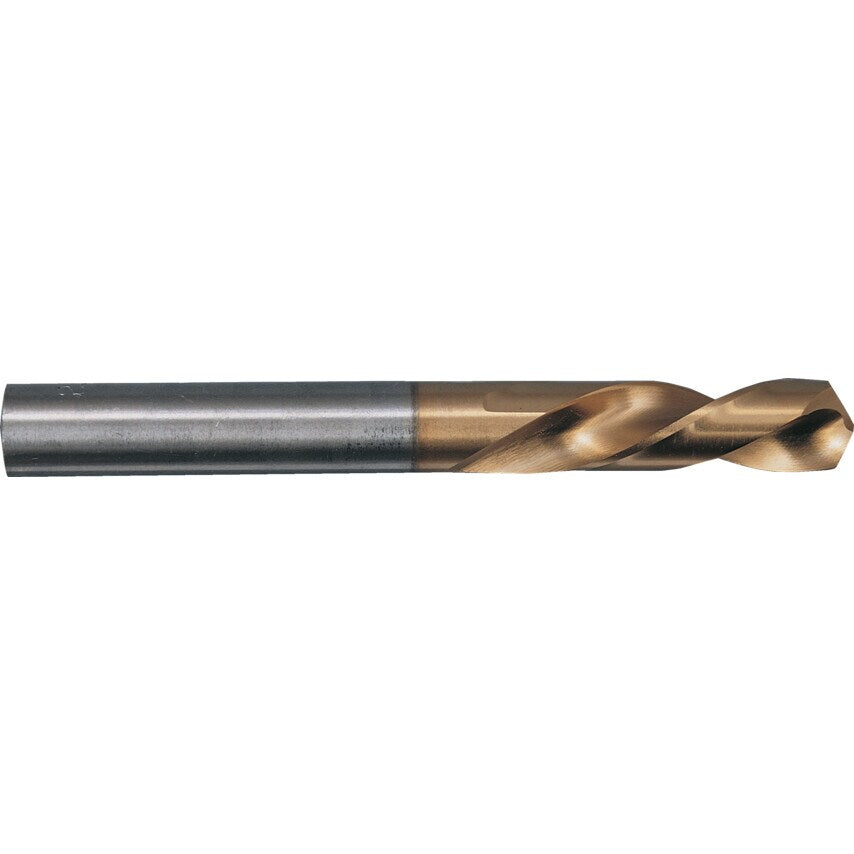

Series 659 HSS-Co Heavy Duty GV120 Straight Shank Stub Drills
High heat resistant drill. For use principally in automatic and capstan lathes. For drilling difficult materials such as stainless steel, resisting steel, spring steel and austenitic steel.
3xD
Metric sizes 0.50mm to 15.50mm
TiN coated
Manufactured to DIN1897
Form A web thinned
| MFR Part No. | 00659 002.350 |
| Finish/Coating | TiN |
| System of Measurement | Metric |
| Number of Pieces | 1 |
| Point Type | Thinned Point |
| Point Angle | 130\u00b0 |
| Coolant Delivery | External |
| Series | 659 |
| Flute Length | 13mm |
| Overall Length | 40mm |
| Standards Met | DIN 1897 |
| Product Type | Stub Drill |
| Drill Diameter Metric | 2.4 |
| Flute Construction | Ground flutes |
| Material | Cobalt High Speed Steel |
| Drill Diameter | 2.4mm |
| Number of Flutes | 2 |
| Shank Diameter Tolerance | H8 |
| Drill Diameter Tolerance | H8 |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Web Thickness | Form A |
