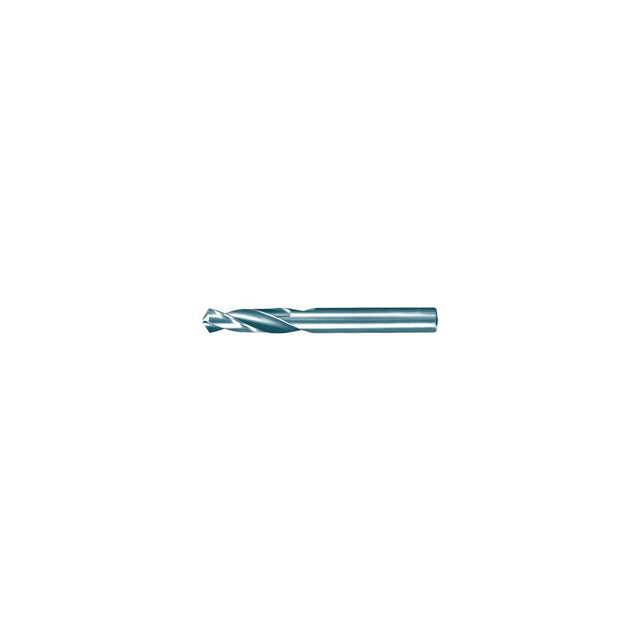

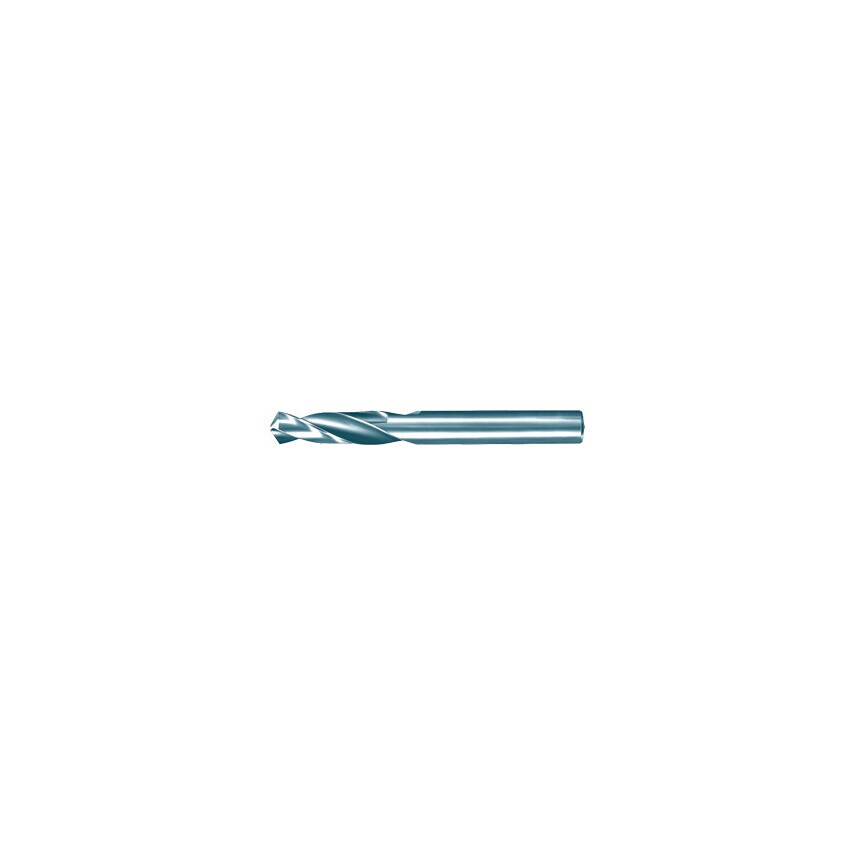

Series 5516 Carbide Straight Shank Stub Drills feature a solid carbide construction with a bright finish. Offering excellent toughness during drilling applications, with good heat and wear resistance.
Features and Benefits
Carbide construction for added toughness
Excellent heat and wear resistance properties
Drills up to 3 x diameter
Typical Applications
Drilling
Standards
DIN 6539
| Web Thickness | Form A |
| Product Type | Carbide Stub Drill |
| Material | Carbide |
| MFR Part No. | 05516 002.600 |
| Number of Flutes | 2 |
| Flute Length | 14mm |
| System of Measurement | Metric |
| Point Angle | 118\u00b0 |
| Finish/Coating | Bright |
| Drill Diameter | 2.6mm |
| Drill Diameter Metric | 2.6 |
| Flute Type | Spiral |
| Series | 5516 |
| Number of Pieces | 1 |
| Cutting Direction | Right Hand |
| Standards Met | DIN 6539 |
| Drill Diameter Tolerance | H7 |
| Overall Length | 43mm |
| Helix Type | Normal Helix |
| Point Type | Four Facet |
