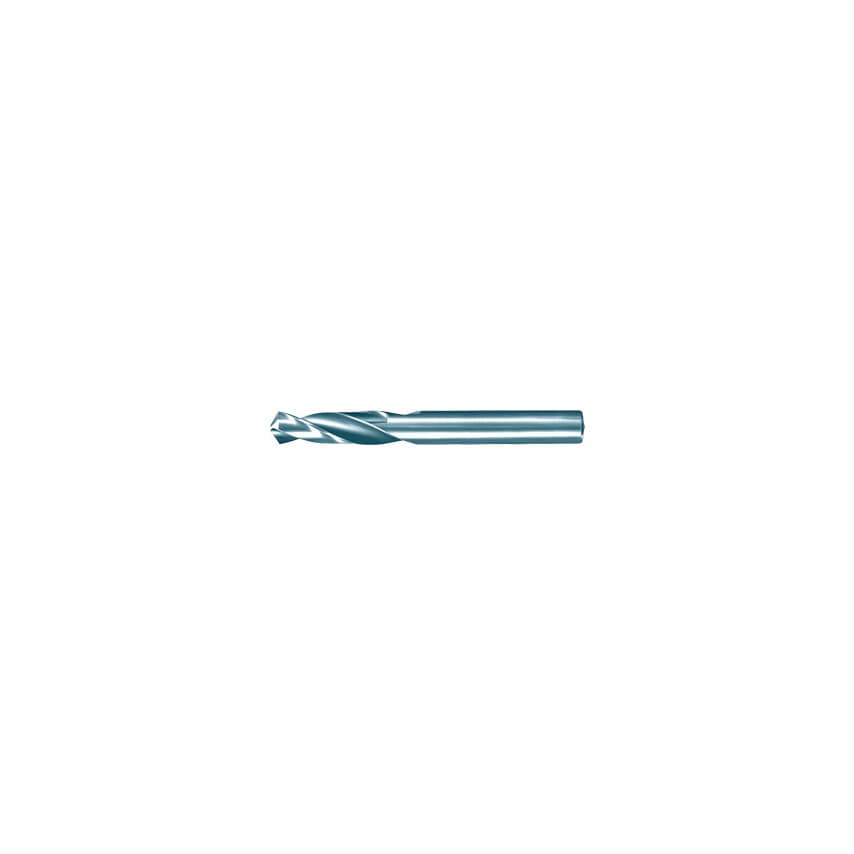

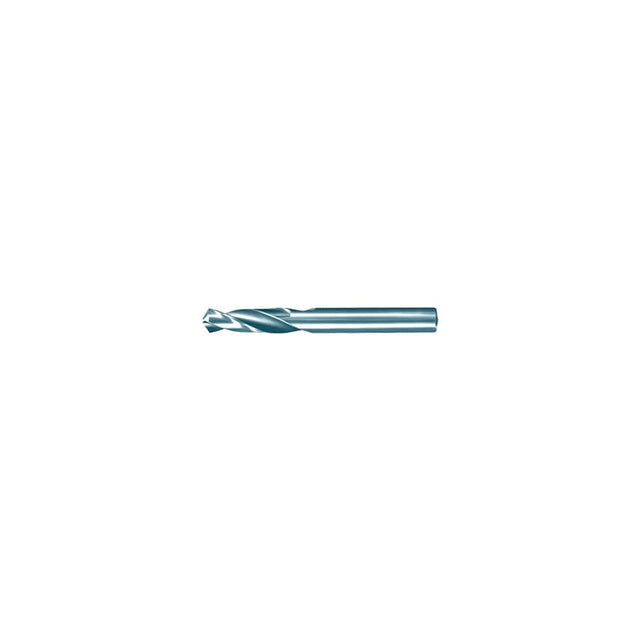

Series 5516 Carbide Straight Shank Stub Drills feature a solid carbide construction with a bright finish. Offering excellent toughness during drilling applications, with good heat and wear resistance.
Features and Benefits
Carbide construction for added toughness
Excellent heat and wear resistance properties
Drills up to 3 x diameter
Typical Applications
Drilling
Standards
DIN 6539
| Finish/Coating | Bright |
| Standards Met | DIN 6539 |
| Point Angle | 118\u00b0 |
| Series | 5516 |
| Drill Diameter Tolerance | H7 |
| Number of Pieces | 1 |
| System of Measurement | Metric |
| Number of Flutes | 2 |
| Web Thickness | Form A |
| Flute Type | Spiral |
| MFR Part No. | 05516 011.110 |
| Overall Length | 95mm |
| Drill Diameter | 11.11mm |
| Flute Length | 47mm |
| Material | Carbide |
| Product Type | Carbide Stub Drill |
| Point Type | Four Facet |
| Cutting Direction | Right Hand |
| Helix Type | Normal Helix |
