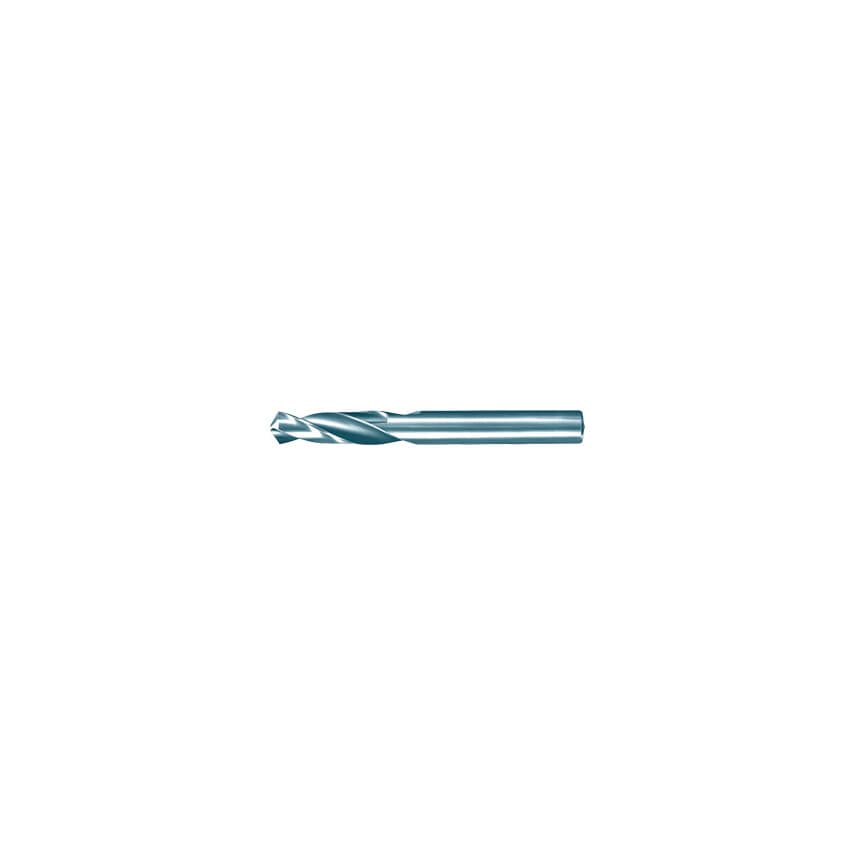

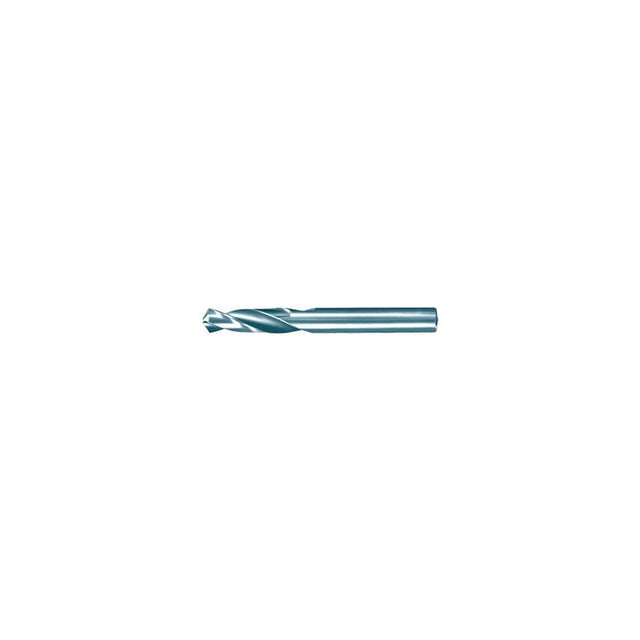

Series 5516 Carbide Straight Shank Stub Drills feature a solid carbide construction with a bright finish. Offering excellent toughness during drilling applications, with good heat and wear resistance.
Features and Benefits
Carbide construction for added toughness
Excellent heat and wear resistance properties
Drills up to 3 x diameter
Typical Applications
Drilling
Standards
DIN 6539
| Cutting Direction | Right Hand |
| Point Angle | 118\u00b0 |
| Material | Carbide |
| Drill Diameter Tolerance | H7 |
| Standards Met | DIN 6539 |
| Number of Pieces | 1 |
| Flute Length | 12mm |
| Web Thickness | Form A |
| Flute Type | Spiral |
| Drill Diameter Metric | 2.1 |
| Point Type | Four Facet |
| MFR Part No. | 05516 002.100 |
| Finish/Coating | Bright |
| Product Type | Carbide Stub Drill |
| Number of Flutes | 2 |
| Series | 5516 |
| Helix Type | Normal Helix |
| System of Measurement | Metric |
| Drill Diameter | 2.1mm |
| Overall Length | 38mm |
