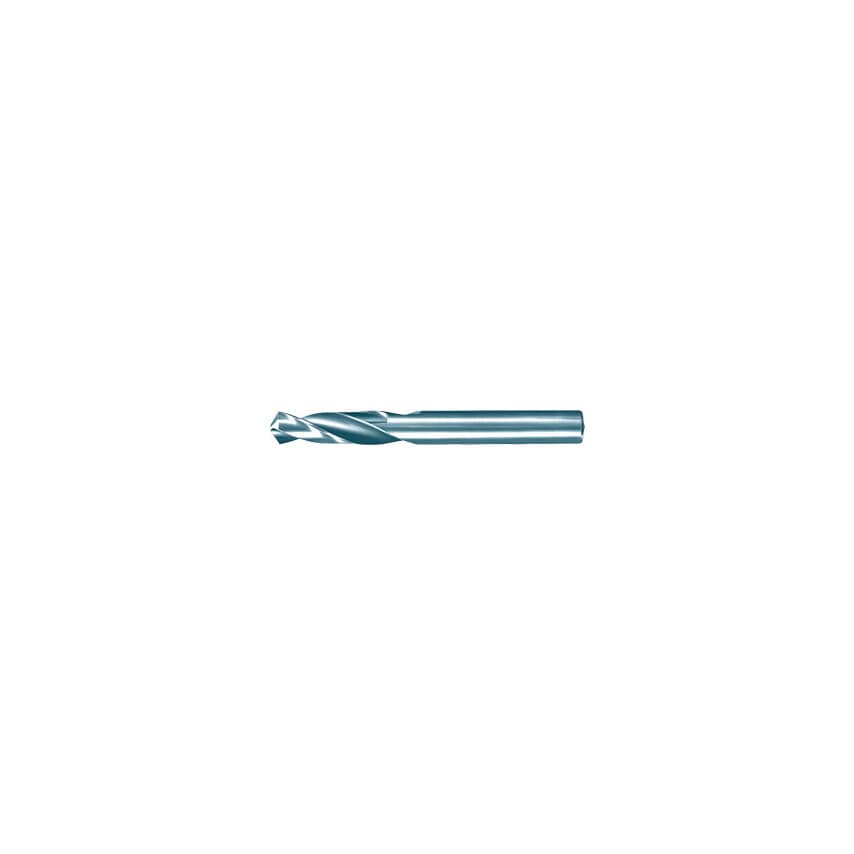

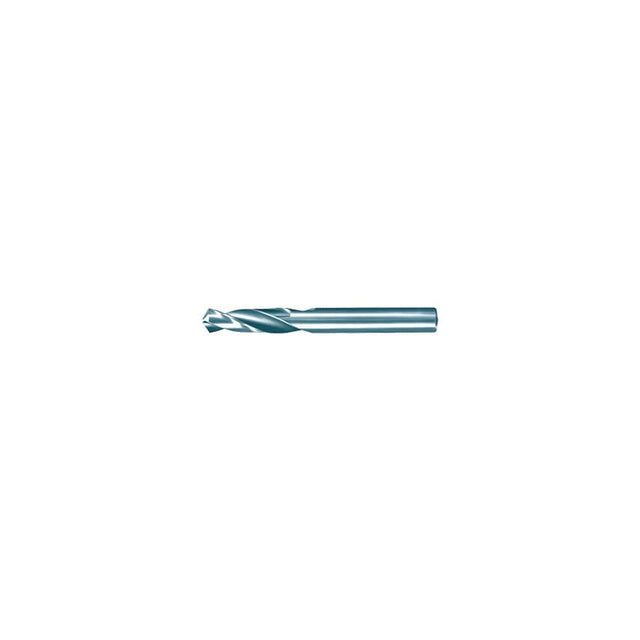

Series 5516 Carbide Straight Shank Stub Drills feature a solid carbide construction with a bright finish. Offering excellent toughness during drilling applications, with good heat and wear resistance.
Features and Benefits
Carbide construction for added toughness
Excellent heat and wear resistance properties
Drills up to 3 x diameter
Typical Applications
Drilling
Standards
DIN 6539
| Flute Length | 14mm |
| Standards Met | DIN 6539 |
| Finish/Coating | Bright |
| Drill Diameter Tolerance | H7 |
| Helix Type | Normal Helix |
| Cutting Direction | Right Hand |
| Number of Flutes | 2 |
| Point Type | Four Facet |
| Web Thickness | Form A |
| Number of Pieces | 1 |
| MFR Part No. | 05516 002.400 |
| Drill Diameter Metric | 2.4 |
| System of Measurement | Metric |
| Overall Length | 43mm |
| Point Angle | 118\u00b0 |
| Flute Type | Spiral |
| Material | Carbide |
| Series | 5516 |
| Drill Diameter | 2.4mm |
| Product Type | Carbide Stub Drill |
