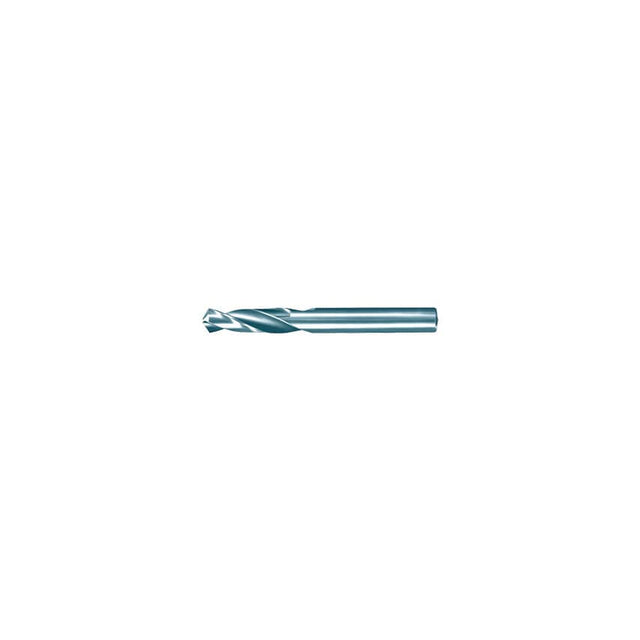

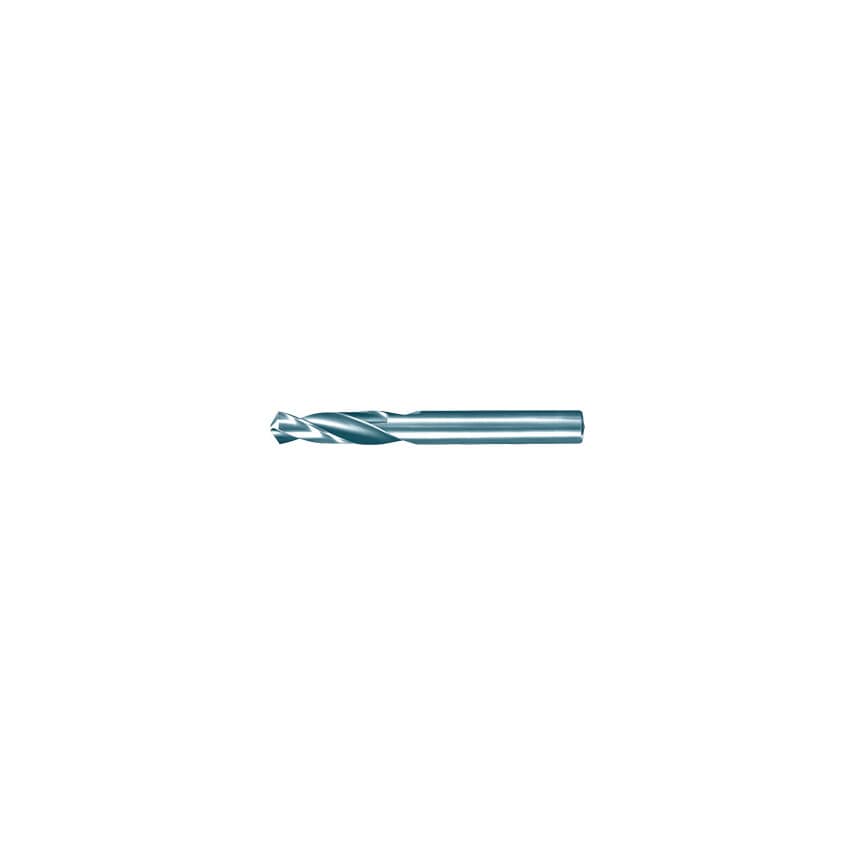

Series 5516 Carbide Straight Shank Stub Drills feature a solid carbide construction with a bright finish. Offering excellent toughness during drilling applications, with good heat and wear resistance.
Features and Benefits
Carbide construction for added toughness
Excellent heat and wear resistance properties
Drills up to 3 x diameter
Typical Applications
Drilling
Standards
DIN 6539
| Point Angle | 118\u00b0 |
| Flute Type | Spiral |
| Drill Diameter Metric | 10.5 |
| Finish/Coating | Bright |
| Material | Carbide |
| Web Thickness | Form A |
| Series | 5516 |
| System of Measurement | Metric |
| Standards Met | DIN 6539 |
| Product Type | Carbide SL Stub Drill |
| Flute Length | 43mm |
| Helix Type | Normal Helix |
| Cutting Direction | Right Hand |
| Drill Diameter | 10.5mm |
| Drill Diameter Tolerance | H7 |
| MFR Part No. | 05516 010.500 |
| Overall Length | 89mm |
| Number of Flutes | 2 |
| Point Type | Four Facet |
| Number of Pieces | 1 |
