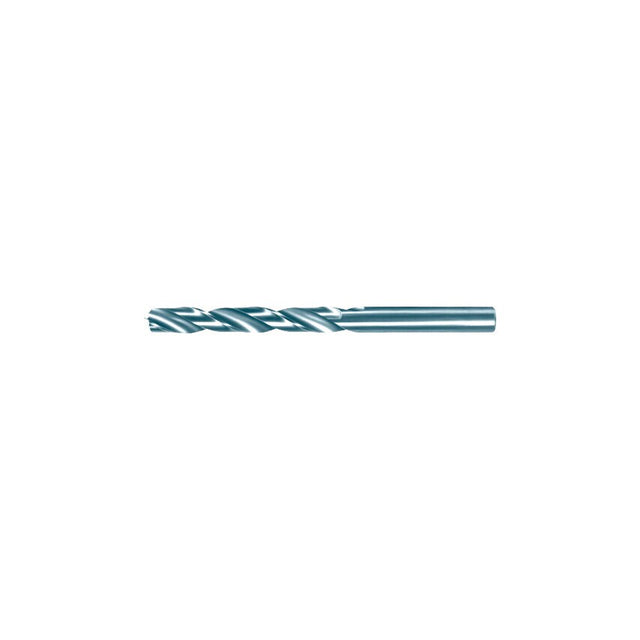

Series 5517 jobber drills are designed for cast steels, grey cast iron, chilled cast iron, austenitic manganese steels, bronzes, light metals and non-ferrous metals. Also for economic machining of abrasive materials (AlSi-alloys), fibre-reinforced plastics and other duroplastics that cause severe abrasion on cutting lips and lands.
Features and Benefits
Carbide construction for increased hardness
Suitable for use on a wide range of materials
Standards
Made to BS 328, DIN338RN
| Point Type | Four Facet |
| Flute Type | Spiral |
| Coolant Delivery | External |
| Finish/Coating | Bright |
| Point Angle | 118\u00b0 |
| Web Thickness | Form A |
| Material | Carbide |
| Flute Length | 87mm |
| Product Type | Jobber/Twist Drill |
| Material Grade | K30/40 |
| MFR Part No. | 05517 010.200 |
| Overall Length | 133mm |
| Cutting Direction | Right Hand |
| Helix Type | Low Helix |
| Drill Diameter | 10.2mm |
| Flute Construction | Ground flutes |
| Series | 5517 |
| Number of Flutes | 2 |
| Drill Diameter Tolerance | H7 |
