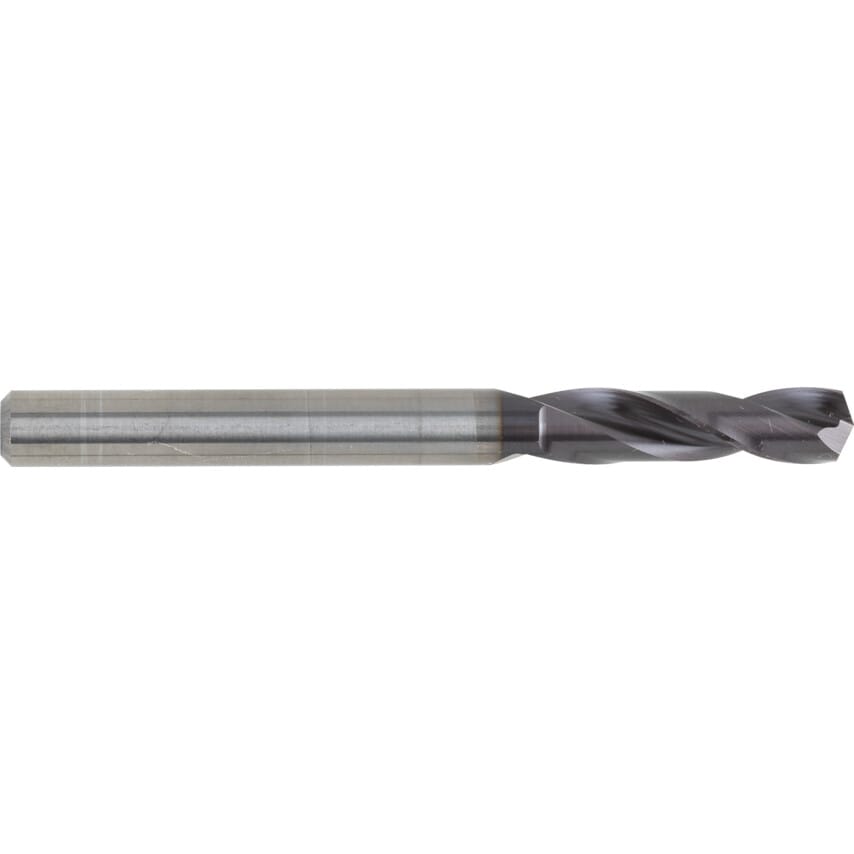

For the drilling of long and short-chipping materials such as structural and case hardened steels, cast steels, heat-treatable steels and alloyed steels with a tensile strength of up to app. 1200N/mm2, including carbon steels, bronze, cast iron and high alloyed AISi-alloys.
Features and Benefits
High alignment accuracy with small diameter tolerance and excellent surface finish
FIREX coating for increased heat and wear resistance
Self-centring qualities for greater precision
Short chip production due to a concave cutting point geometry and web thinning
Standards
Manufactured to DIN 6537
Notes
Sizes 3.00mm to 20.00mm
| Number of Flutes | 2 |
| Coolant Delivery | External |
| Helix Type | Normal Helix |
| Overall Length | 79mm |
| Shank Diameter | 8mm |
| Material Grade | Carbide |
| Carbide Drill Type | Carbide High Performance |
| Drill Diameter Tolerance | M7 |
| Cutting Direction | Right Hand |
| ISO Category Grade | K | P |
| ISO Category | K | P |
| Point Angle | 140\u00b0 |
| Product Type | Drills |
| Series | 5514 |
| Shank Diameter Tolerance | H6 |
| Drill Diameter | 8mm |
| Material | Carbide |
| Diameter x Depth | 3xD |
| Flute Type | Spiral |
| Standards Met | DIN 6537 |
| Finish/Coating | FIREX\u00ae |
| Flute Length | 41mm |
| Drill Diameter Metric | 8mm |
| MFR Part No. | 05514 008.000 |
