Series 3670

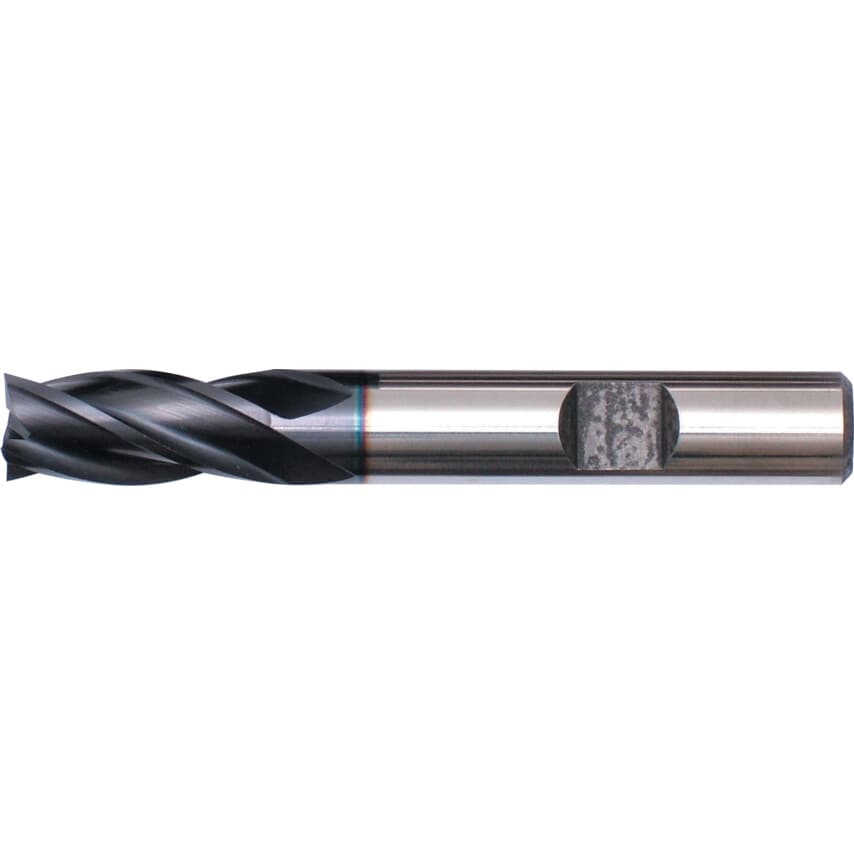

Short rigid end mills to suit all general purpose profiling applications, including alloyed steels, stainless steels and non-ferrous materials. Centre cutting. Fire coated.
Unique Fire Coating
Applied in Guhrings own coating plants using the PVD process. All round coating can achieve two to three times the performance of TiN, and considerably better than TiALn. Has excellent heat resistance as well as high toughness, therefore it is well-suited for interrupted cutting.
| Plunge Type | Centre Cutting |
| MFR Part No. | 03670 006.000 |
| Coolant Delivery | External |
| Overall Length | 57.0mm |
| Milling Cutter Type | End Mills |
| Cutter Style | Square End |
| Flute Type | Helical |
| Finish/Coating | Fire |
| System of Measurement | Metric |
| Series | 3670 |
| Flute Length | 13.0mm |
| Material Grade | M42 |
| Standards Met | DIN 844K | Shank DIN 1835B |
| Cutter Diameter | 6.0mm |
| End Mill Type | End Mill |
| Length Type | Regular |
| Product Type | End Mills |
| Helix Angle | 30\u00b0 |
| Cutting Direction | Right Hand |
| Number of Flutes | 4 |
| Material | Cobalt High Speed Steel |
| ISO Category | P |
| Shank Type | Weldon Flat |
| Shank Diameter | 6 |
