Series 3670

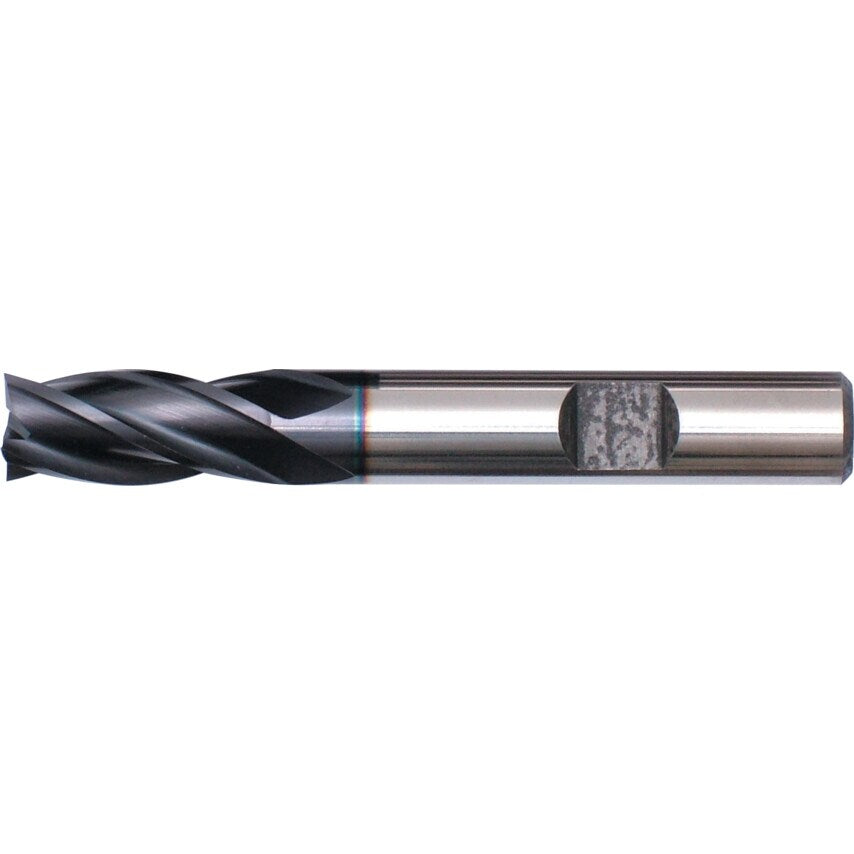

Short rigid end mills to suit all general purpose profiling applications, including alloyed steels, stainless steels and non-ferrous materials. Centre cutting. Fire coated.
Unique Fire Coating
Applied in Guhrings own coating plants using the PVD process. All round coating can achieve two to three times the performance of TiN, and considerably better than TiALn. Has excellent heat resistance as well as high toughness, therefore it is well-suited for interrupted cutting.
| Flute Type | Helical |
| Shank Diameter | 6 |
| Shank Type | Weldon Flat |
| Coolant Delivery | External |
| Flute Length | 13.0mm |
| Series | 3670 |
| End Mill Type | End Mill |
| Material | Cobalt High Speed Steel |
| Milling Cutter Type | End Mills |
| Cutting Direction | Right Hand |
| Cutter Style | Square End |
| ISO Category | P |
| Material Grade | M42 |
| Standards Met | DIN 844K | Shank DIN 1835B |
| Cutter Diameter | 5.0mm |
| Length Type | Regular |
| Number of Flutes | 4 |
| Overall Length | 57.0mm |
| Plunge Type | Centre Cutting |
| System of Measurement | Metric |
| Helix Angle | 30\u00b0 |
| Product Type | End Mills |
| MFR Part No. | 03670 005.000 |
| Finish/Coating | Fire |
