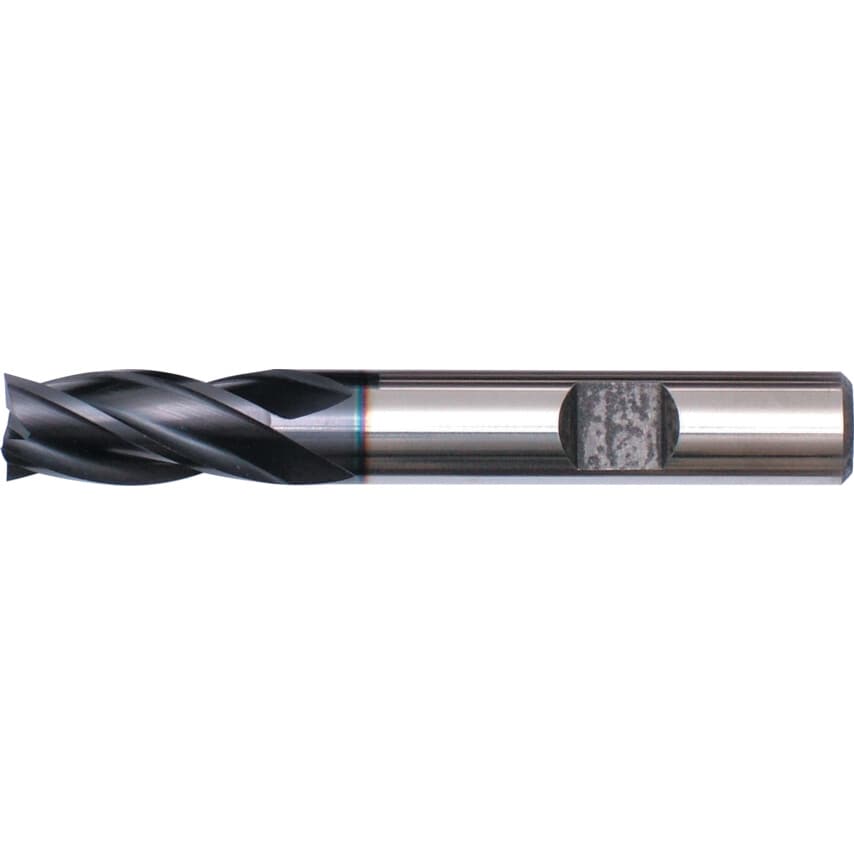

Series 3670
Short rigid end mills to suit all general purpose profiling applications, including alloyed steels, stainless steels and non-ferrous materials. Centre cutting. Fire coated.
Unique Fire Coating
Applied in Guhrings own coating plants using the PVD process. All round coating can achieve two to three times the performance of TiN, and considerably better than TiALn. Has excellent heat resistance as well as high toughness, therefore it is well-suited for interrupted cutting.
| Overall Length | 69.0mm |
| MFR Part No. | 03670 008.000 |
| Helix Angle | 30\u00b0 |
| End Mill Type | End Mill |
| Material | Cobalt High Speed Steel |
| System of Measurement | Metric |
| Finish/Coating | Fire |
| Shank Diameter | 10 |
| Flute Length | 19.0mm |
| ISO Category | P |
| Series | 3670 |
| Standards Met | DIN 844K | Shank DIN 1835B |
| Cutter Style | Square End |
| Flute Type | Helical |
| Milling Cutter Type | End Mills |
| Material Grade | M42 |
| Cutter Diameter | 8.0mm |
| Shank Type | Weldon Flat |
| Cutting Direction | Right Hand |
| Number of Flutes | 4 |
| Coolant Delivery | External |
| Plunge Type | Centre Cutting |
| Length Type | Regular |
