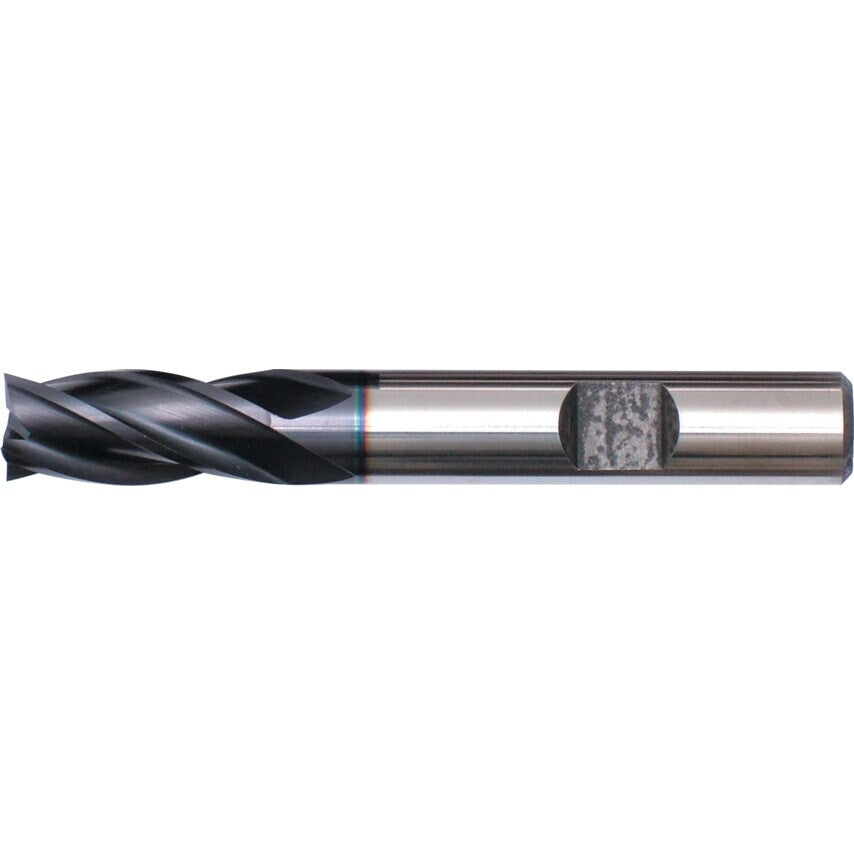

Series 3670
Short rigid end mills to suit all general purpose profiling applications, including alloyed steels, stainless steels and non-ferrous materials. Centre cutting. Fire coated.
Unique Fire Coating
Applied in Guhrings own coating plants using the PVD process. All round coating can achieve two to three times the performance of TiN, and considerably better than TiALn. Has excellent heat resistance as well as high toughness, therefore it is well-suited for interrupted cutting.
| MFR Part No. | 03670 004.000 |
| Material Grade | M42 |
| Helix Angle | 30\u00b0 |
| Series | 3670 |
| End Mill Type | End Mill |
| Plunge Type | Centre Cutting |
| Cutting Direction | Right Hand |
| Flute Length | 11.0mm |
| Cutter Style | Square End |
| Cutter Diameter | 4.0mm |
| Flute Type | Helical |
| System of Measurement | Metric |
| Shank Diameter | 6 |
| Length Type | Regular |
| Product Type | End Mill |
| Overall Length | 55.0mm |
| ISO Category | P |
| Standards Met | DIN 844K | Shank DIN 1835B |
| Milling Cutter Type | End Mills |
| Finish/Coating | Fire |
| Material | Cobalt High Speed Steel |
| Coolant Delivery | External |
| Shank Type | Weldon Flat |
| Number of Flutes | 4 |
