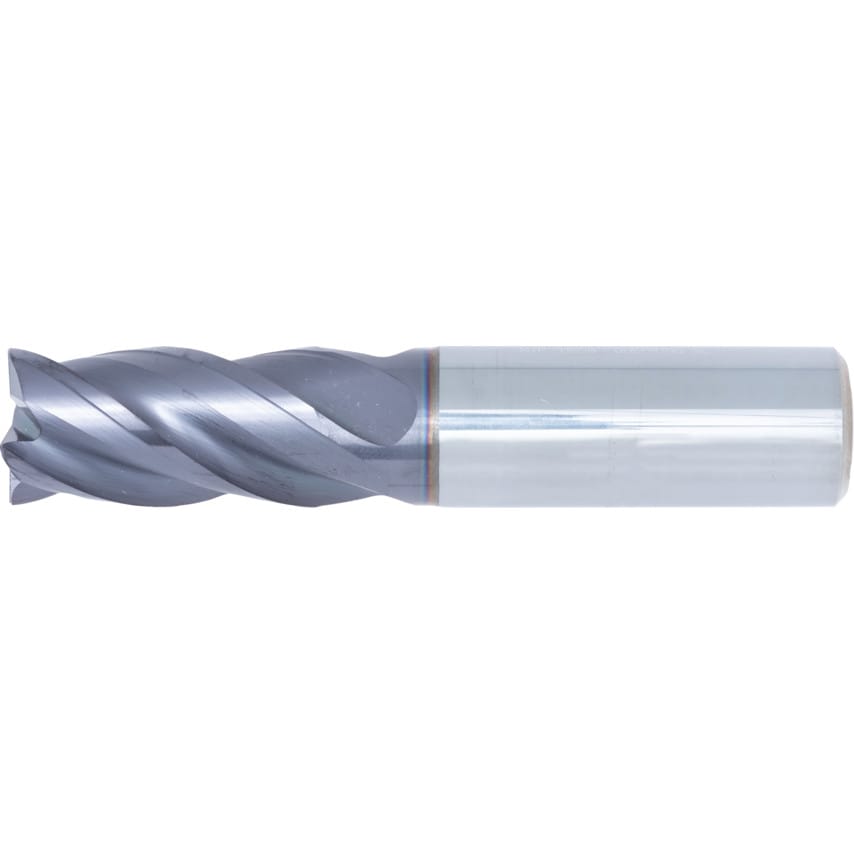

Series 5535 Designed for general-purpose universal milling with a 35/38 unequal helix. their Unique FIREX Coating is applied in Guhring's own coating plants using the PVD process. All round coating can achieve two to three times the performance of TiN, and considerably better than TiALn. Has excellent heat resistance as well as high toughness, therefore it is well-suited for interrupted cutting.
Features and Benefits
Unique FIREX coating achieves two to three times the performance of TiN
Durable carbide construction
Excellent heat resistance propeties
High toughness and durability
Specification
Series 5535
FIREX coating
Helix angle 35/38

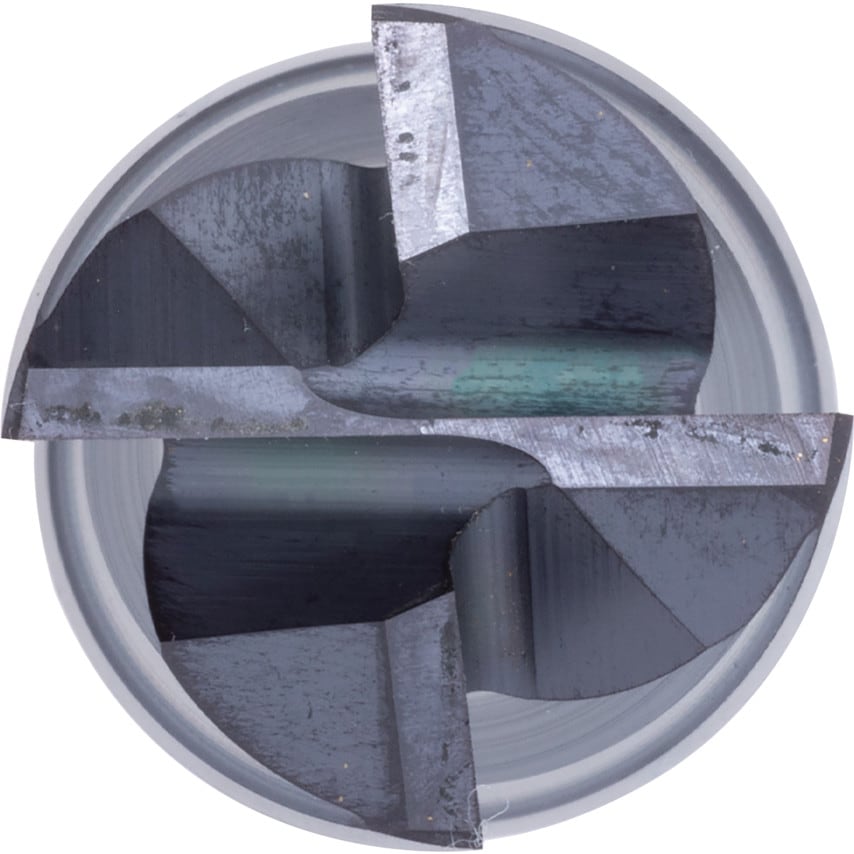

Centre cutting
Cutting diameter to h10
DIN 6527L
Typical Applications
Universal milling
Steel
Cast iron
| Shank Type | Weldon Flat |
| Material | Carbide |
| Flute Type | Helical |
| MFR Part No. | 05535 020.000 |
| Standards Met | DIN 6527L |
| Length Type | Regular |
| Corner Radius | 0.45mm |
| Shank Diameter Tolerance | H6 |
| Cutter Diameter | 20.0mm |
| Helix Angle | 35/38\u00b0 |
| Shank Diameter | 20.0mm |
| Plunge Type | Centre Cutting |
| ISO Category | P |
| End Mill Type | End Mill |
| Number of Flutes | 4 |
| System of Measurement | Metric |
| Flute Length | 38.0mm |
| Finish/Coating | FIREX\u00a9 |
| Series | 5535 |
| Overall Length | 104.0mm |
| Cutting Direction | Right Hand |
| Cutter Style | Square End |
| Cutter Diameter Tolerance | H10 |
| Milling Cutter Type | End Mills |
| Coolant Delivery | External |
