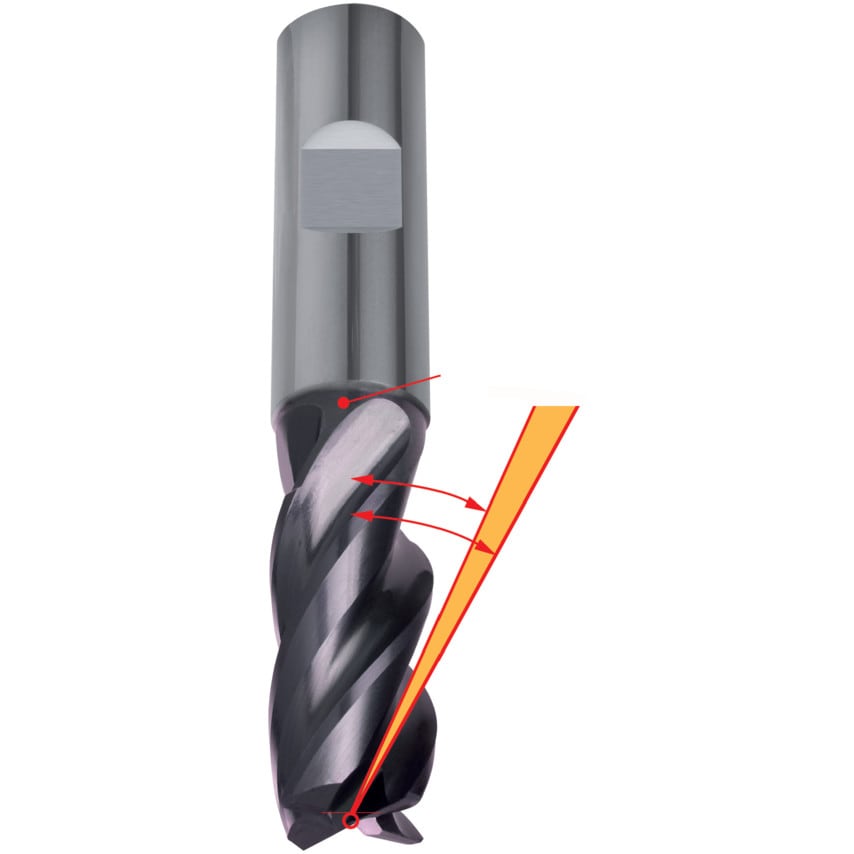

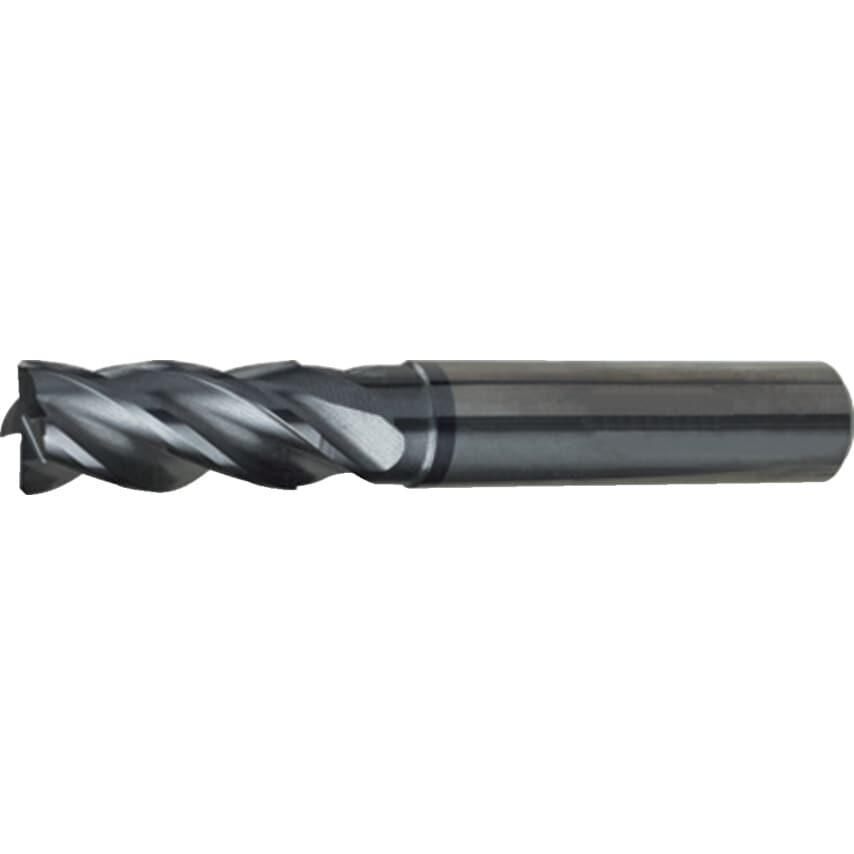

Series 3800 cabide plain shank end mills feature a nano-A coated - AlTiN-coating (Al-content between TiAlN and SuperA) multilayer with nanostructured areas. This allows the tool to offer excellent resistance against blue-violet, high heat- and wear. The carbide construction allows for a harder cutting edge with greater efficiency and the 4 flute design offers a precision cut for greater surface finishing.
Features and Benefits
nano-A coated for excellent resistance against blue-violet, high heat- and wear
Carbide construction for a harder cutting edge and greater efficiency
4 flute design offers a precision cut for greater surface finishing
Flattened shank for greater drilling stability
Typical Applications
Milling
| Standards Met | DIN 6527L |
| Cutting Direction | Right Hand |
| ISO Category | S |
| Helix Angle | 36/38\u00b0 |
| Overall Length | 121mm |
| Finish/Coating | nano-A\u2122 |
| Length Type | Standard Length |
| Shank Diameter | 25mm |
| System of Measurement | Metric |
| Milling Cutter Type | End Mills |
| Coolant Delivery | External |
| Corner Radius | 0.75mm |
| Cutter Style | Square End |
| Flute Length | 45mm |
| Shank Diameter Tolerance | H6 |
| Series | 3803 |
| Material | Carbide |
| Flute Type | Helical |
| Cutter Diameter | 25mm |
| Plunge Type | Non-centre Cutting |
| Number of Flutes | 4 |
| Shank Type | Weldon Flat |
| Cutter Diameter Tolerance | H10 |
| Product Type | End Mills |
| MFR Part No. | 03803 025.000 |
