Series 3663

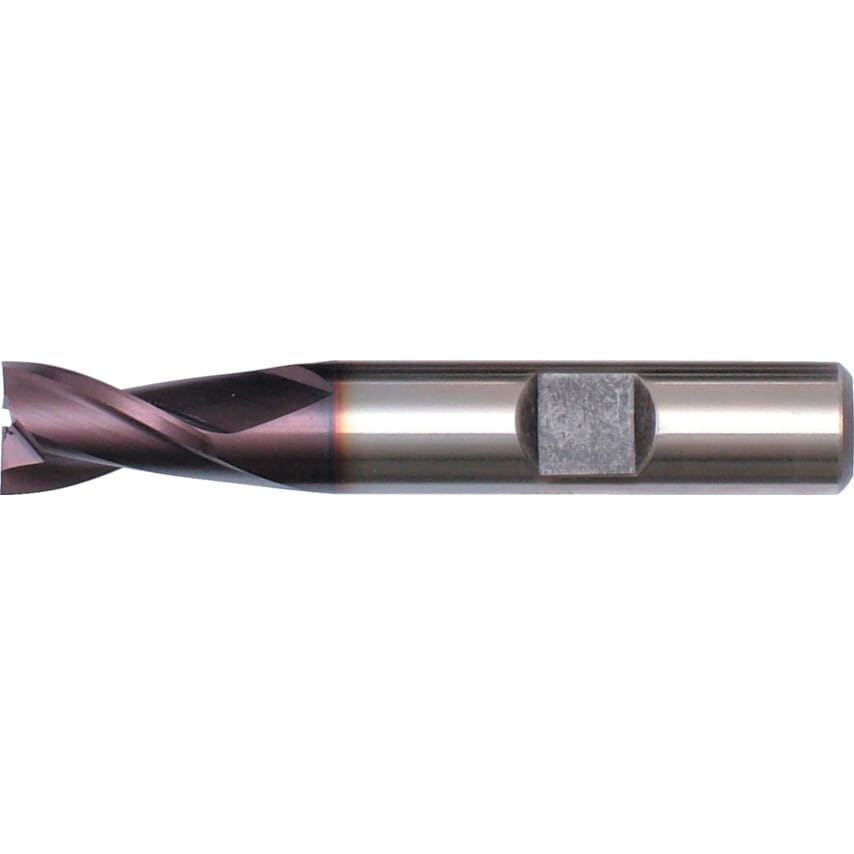

Short rigid slot drills to suit all general purpose applications, including alloyed steels, stainless steels and non-ferrous materials. Fire coated.
Unique Fire Coating
Applied in Guhrings own coating plants using the PVD process. All round coating can achieve two to three times the performance of TiN, and considerably better than TiALn. Has excellent heat resistance as well as high toughness, therefore it is well-suited for interrupted cutting.
| Number of Flutes | 2 |
| System of Measurement | Metric |
| End Mill Type | Slot Drill |
| MFR Part No. | 03663 008.000 |
| Coolant Delivery | External |
| Overall Length | 61.0mm |
| Cutter Style | Square End |
| Cutter Diameter | 8mm |
| Product Type | Slot Drills |
| Shank Diameter | 10mm |
| Flute Type | Helical |
| Milling Cutter Type | Slot Drill |
| Cutting Direction | Right Hand |
| Series | 3663 |
| Finish/Coating | Fire |
| Shank Type | Weldon Flat |
| Flute Length | 11mm |
| Material | Cobalt High Speed Steel |
| Length Type | Short |
