£0.86

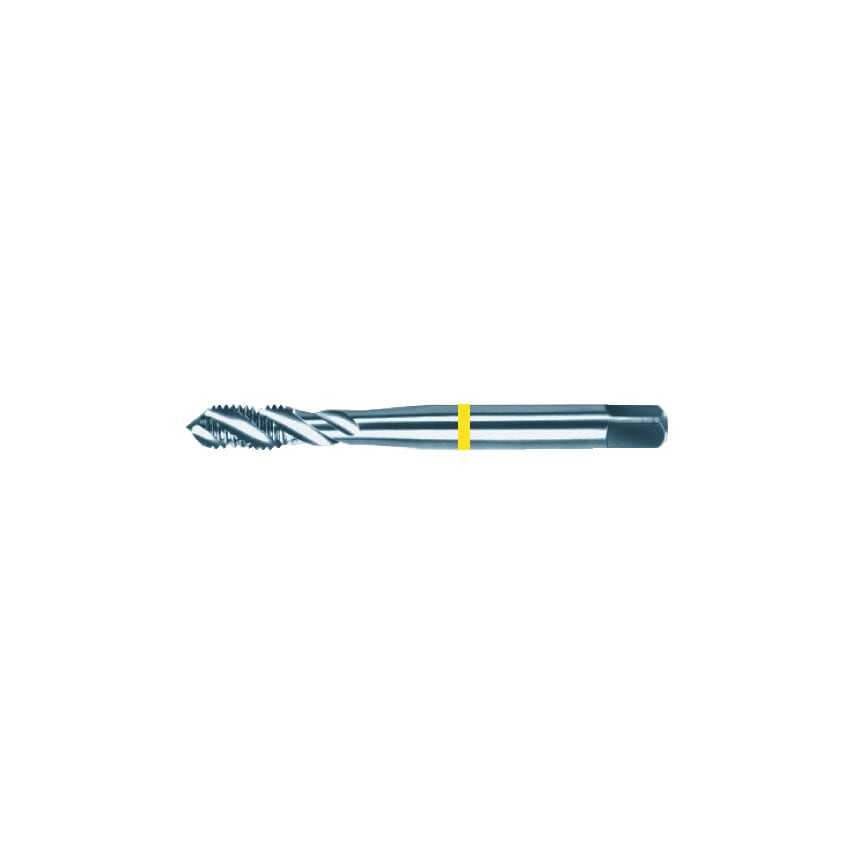

Made from a high speed steel and cobalt construction with a steam tempered coating for excellent heat and wear resistance.
Features and Benefits
High speed steel construction for increased durability
Steam tempered for increased heat and wear resistance
Typical Applications
Blind holes
Standards
Manufactured to DIN 371
Taper lead to DIN form B (3.5 x P to 5.5 x P)
Tapping tolerance to 6HX
ISO Metric Coarse
Finish/Coating | Steam Tempered |
Ring Colour | Yellow |
Thread Direction | Right Hand |
Dimensions Standard | DIN 371 |
Material Grade | M35 |
Thread Length | 6.00mm |
Class of Fit | 6H |
Coolant Delivery | External |
Lead | C 2-3 |
Square Width | 2.7mm |
MFR Part No. | 05554 003.000 |
Thread Standard | Metric Coarse |
Overall Length | 56mm |
Number of Flutes | 3 |
Tap Type | Spiral Flute |
Thread Size | M3 |
Helix Angle | 40\u00b0 |
Material Application | Steels |
Material | Cobalt High Speed Steel |
Shank Diameter | 3.5mm |
Pitch | 0.5 |
Series | 5554 |
