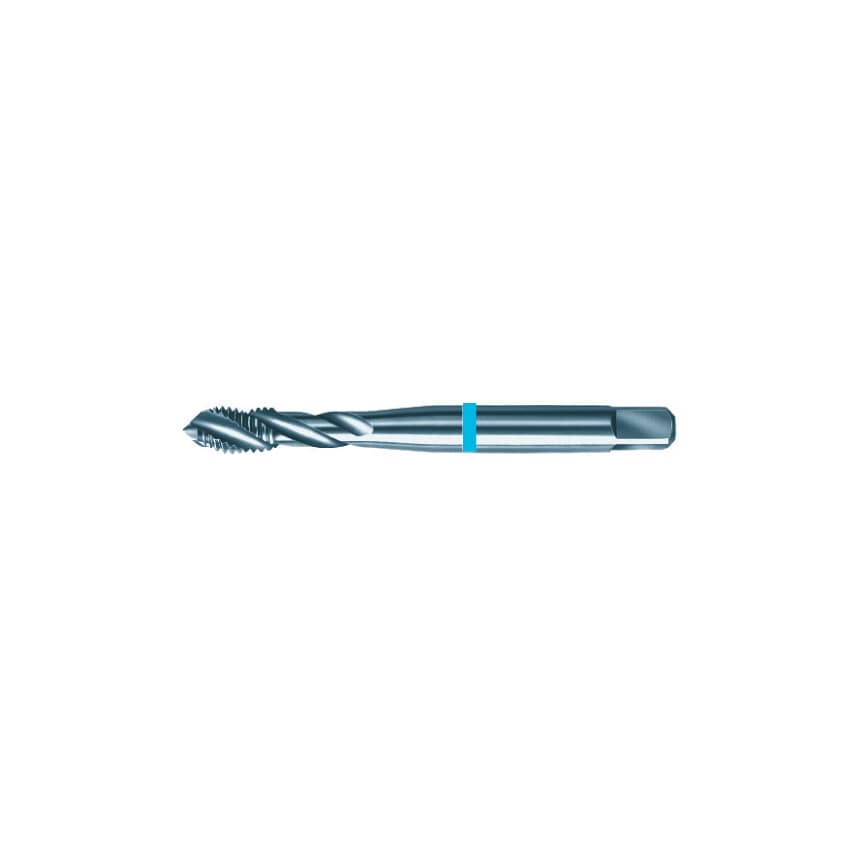

Manufactured from HSS-E steel to DIN 371.
For blind holes.
Taper lead to DIN form B (3.5 x P to 5.5 x P).
Tapping tolerance to 6HX.
Series 5553
ISO Metric Coarse
| Overall Length | 100mm |
| Finish/Coating | Steam Tempered |
| Class of Fit | 6H |
| MFR Part No. | 05553 010.000 |
| Material Grade | M35 |
| Series | 5553 |
| Square Width | 8.0mm |
| Helix Angle | 40 |
| Ring Colour | Blue |
| Thread Size | M10 |
| Tapping Depth | 39.0mm |
| Coolant Delivery | External |
| Number of Flutes | 3 |
| Pitch | 1.5 |
| Thread Standard | Metric Coarse |
| Tap Type | Spiral Flute |
| Shank Diameter | 10.0mm |
| Thread Length | 16.00mm |
| Dimensions Standard | DIN 371 |
| Material Application | Steels |
| Material | Cobalt High Speed Steel |
| Thread Direction | Right Hand |
