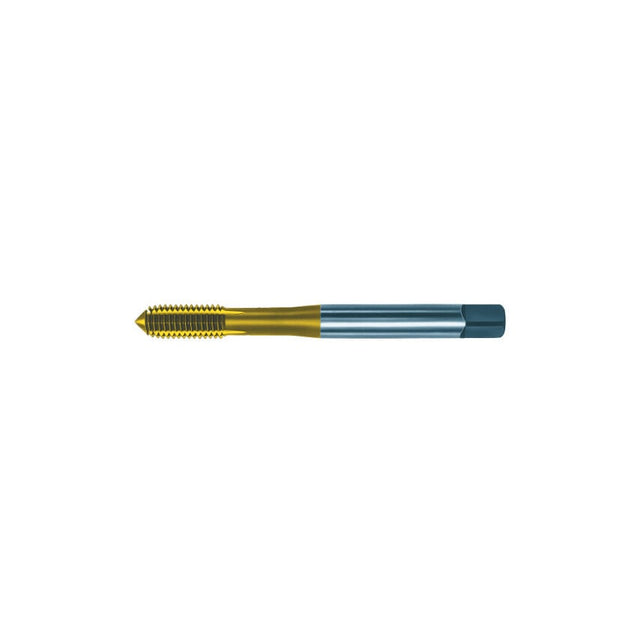

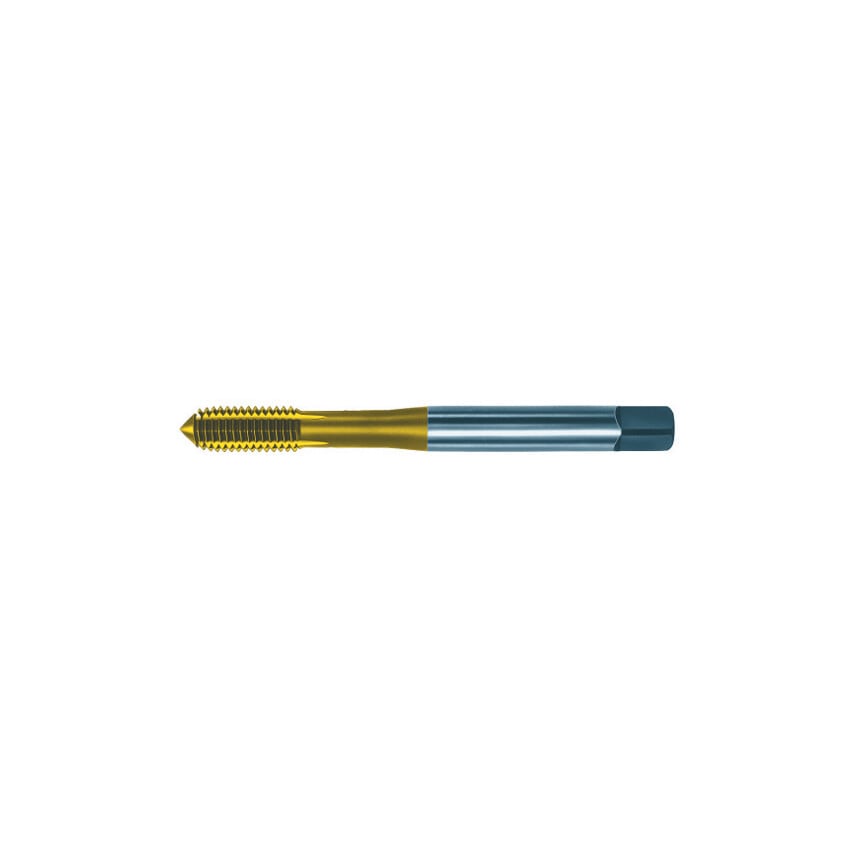

Guhring standard production taps are marked with colour rings to help you quickly and confidently choose the correct tool for your job. Each ring relates to the unique machining behaviours of different materials as dictated by their type and condition.
Manufactured from HSS-E steel to DIN 371.
For blind and through holes
To form C
Size range M3 to M10
TiN coated
Tolerance to 6HX
| Pitch | 0.5 |
| Coolant Delivery | External |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Class of Fit | 6HX |
| Thread Size | M3 |
| Shank Diameter | 3.5mm |
| Product Type | Machine Taps |
| Helix Angle | 0 |
| Square Width | 2.7mm |
| Overall Length | 56mm |
| Material Grade | M35 |
| Thread Length | 10.00mm |
| Material | Cobalt High Speed Steel |
| MFR Part No. | 05598 003.000 |
| Tap Type | Fluteless |
| Dimensions Standard | DIN 371 |
| Thread Standard | Metric Coarse |
| Series | 5598 |
