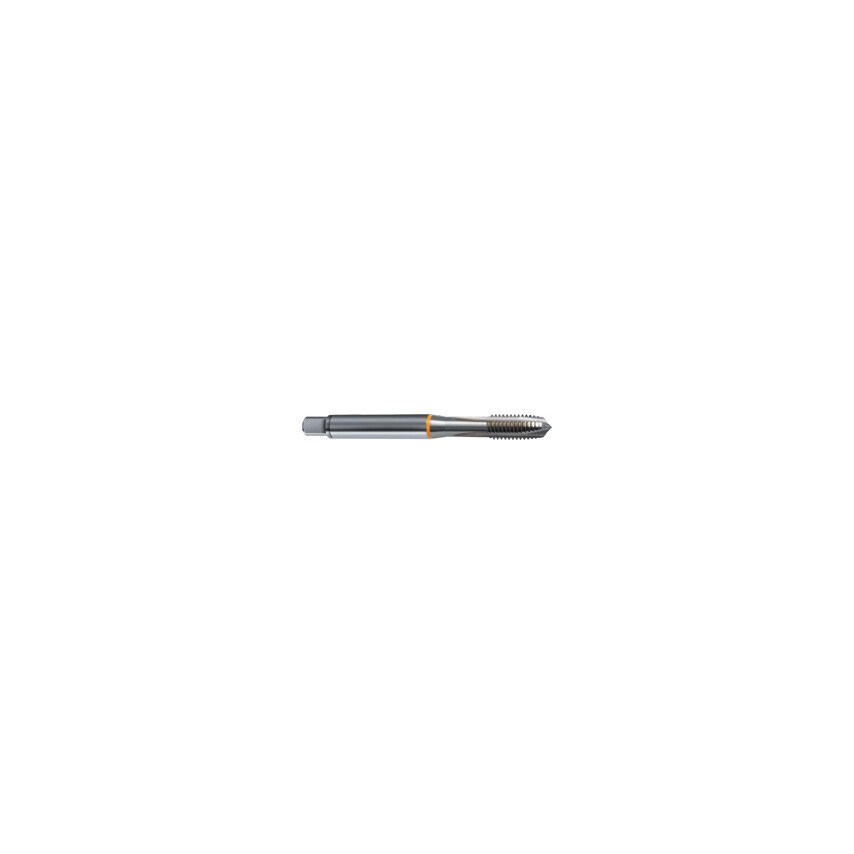

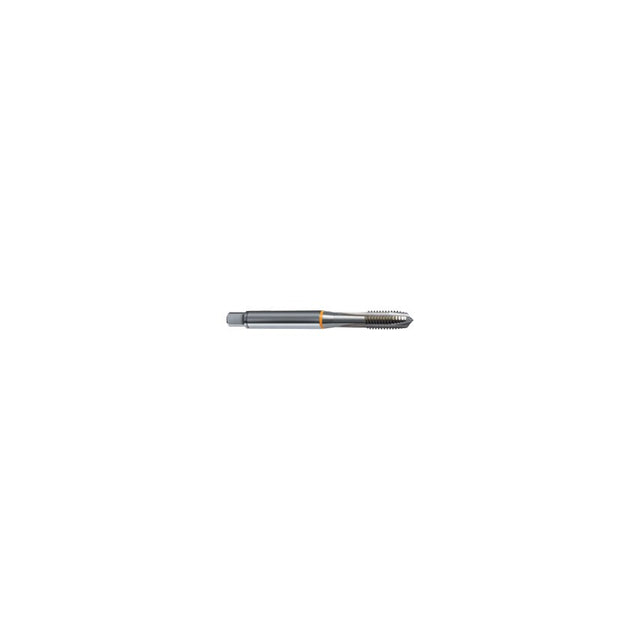

Series 803 HSS-E Straight Flute Spiral Point Tap
HSS-E (Cobalt)
Chamfer: Form B 3.5 - 5
Manufactured to DIN 371
For Through holes
External coolant
Yellow Ring
Straight flute - Spiral point
| Tap Type | Spiral Point |
| Shank Diameter | 3.5mm |
| Finish/Coating | Bright |
| Material | Cobalt High Speed Steel |
| Series | 803 |
| Tapping Depth | 18.00mm |
| Overall Length | 56.00mm |
| Number of Flutes | 3 |
| Pitch | 0.5 |
| Thread Direction | Right Hand |
| Thread Size | M3 |
| MFR Part No. | 00803 003.000 |
| Thread Standard | Metric Coarse |
| Dimensions Standard | DIN 371 |
| Class of Fit | 6H |
| Square Width | 2.70mm |
