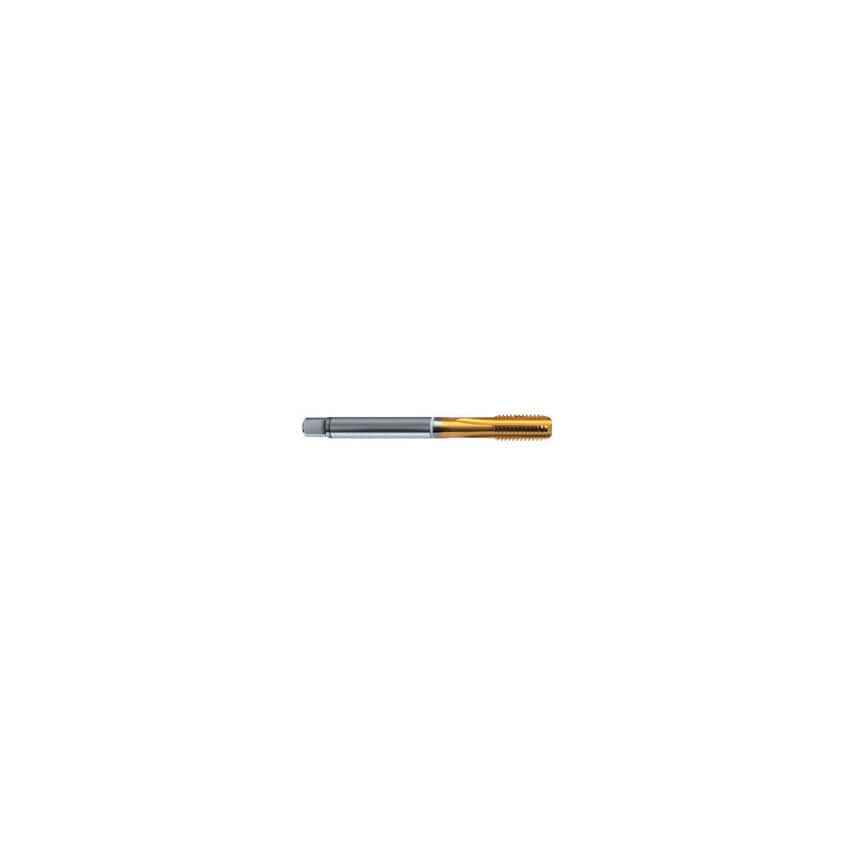

Series 931
Standard DIN 376, DIN 2184-1
Tool Material HSS-E (Cobalt)
Spiral point: straight flute
Chamfer Form C 2-3
Class of Fit 6HX
Through holes
Blind holes
TiN coated
External cooling
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Shank Diameter | 9 |
| Dimensions Standard | DIN 376 |
| Tapping Depth | 49 |
| Tap Type | Spiral Point |
| MFR Part No. | 00931 012.000 |
| Material | Cobalt High Speed Steel |
| Material Grade | M35 |
| Thread Standard | M |
| Series | 931 |
| Thread Size | M12 |
| Helix Angle | 0 |
| Square Width | 7 |
| Class of Fit | 6HX |
| Overall Length | 110cm |
| Number of Flutes | 4 |
| Thread Length | 24 |
