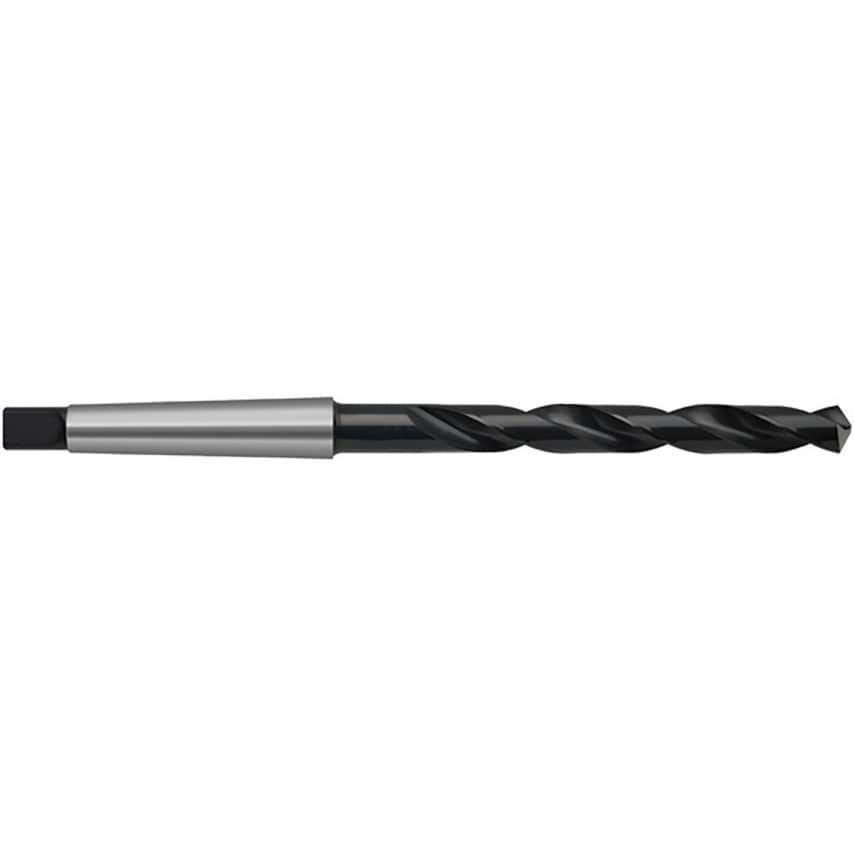

Series 245 HSS Taper Shank Drills
Metric
To drill steels with a tensile strength up to 1.000 N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118, helix angle: normal, relief angle: normal, tolerance of diameter: h8. Manufacturing Standard: DIN 345.
| Point Type | Thinned Point |
| Flute Length | 165mm |
| Shank Type | Taper Shank |
| Coolant Delivery | External |
| Overall Length | 286mm |
| Drill Diameter | 25.25mm |
| Drill Length Type | Standard Length |
| Type | HSS Taper Shank |
| Series | 245 |
| Standards Met | DIN 345 |
| Material | HSS |
| Cutting Direction | Right Hand |
| Diameter | 25.25mm |
| Drill Diameter Tolerance | H8 |
| Flute Type | Spiral |
| Shank Diameter Tolerance | H8 |
| Product Type | Drills |
| Taper Shank Size | MT3 |
| MFR Part No. | 00245 025.250 |
| Finish/Coating | Steam Tempered |
| Size | 25.25mm |
| Point Angle | 118\u00b0 |
