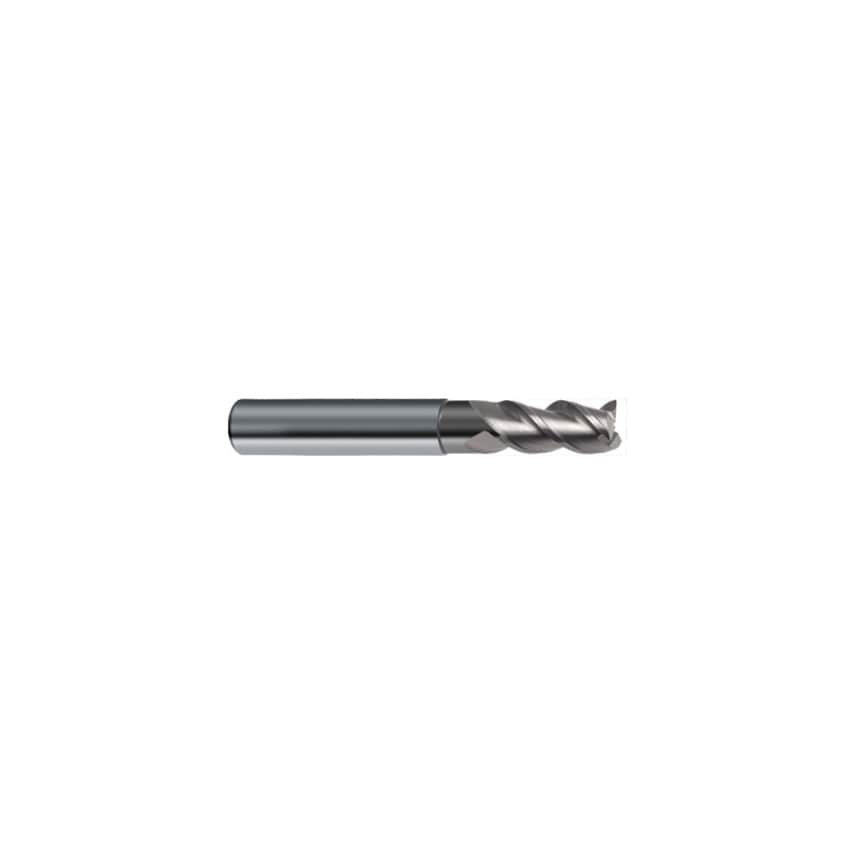

Series 3472 carbide RF100A end mills are aluminium ratio end mills RF100A on a cylindrical shank for slotting, roughing,ramping,drilling and finishing. Manufactured from a hard carbide construction with 3 flutes for excellent cutting performance.
Features and Benefits
Hard carbide construction for increased tool strength
3 flutes for excellent chip control and stock removal
Centre cutting design for precision
Nano polished cutting edges for easier cutting
Typical Applications
Milling
Standards
Manufacturers Standards
| Series | 3472 |
| Length Type | Regular |
| Helix Angle | 39/40/41\u00b0 |
| ISO Category | N |
| Material | Carbide |
| Number of Flutes | 3 |
| Cutting Direction | Right Hand |
| Flute Length | 11.0mm |
| Shank Diameter Tolerance | H6 |
| MFR Part No. | 03472 004.000 |
| Cutter Diameter | 4.0mm |
| Plunge Type | Centre Cutting |
| Overall Length | 57.0mm |
| Cutter Style | Square End |
| Coolant Delivery | External |
| Finish/Coating | Bright |
| Standards Met | Guhring Standard |
| Product Type | End Mills |
| Milling Cutter Type | End Mills |
| Cutter Diameter Tolerance | e8 |
| End Mill Type | End Mill |
| Shank Diameter | 6.0mm |
| Flute Type | Helical |
| System of Measurement | Metric |
| Shank Type | Plain Round |
