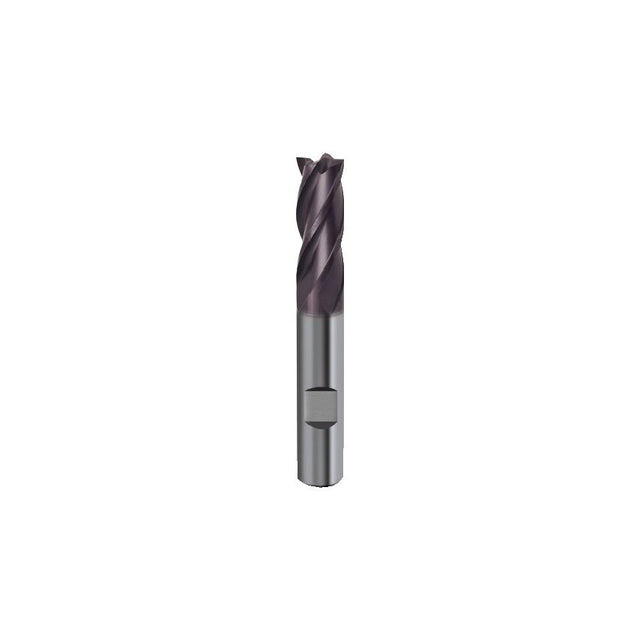

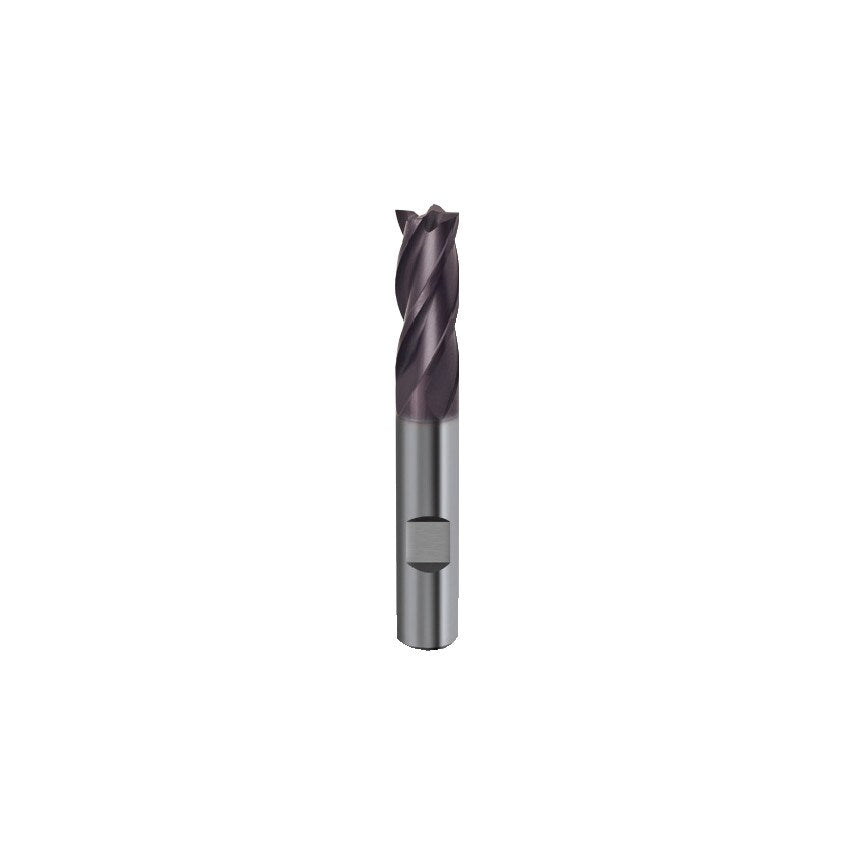

Series 5532 carbide weldon shank end mills feature a hard carbide construction with a hardy fire coating for excellent heat and wear resistance.
Features and Benfits
Carbide construction for improved cutting hardness
4 flutes for precision cutting performance
FIREX coated for excellent heat and wear resistance
Weldon shank for increased stability
Notes
Metric sizes 2.00mm to 20.00mm
Standards
Manufactured to DIN 6527L
| Length Type | Regular |
| Overall Length | 83.0mm |
| Helix Angle | 30\u00b0 |
| Corner Radius | 0.1mm |
| Number of Flutes | 4 |
| Standards Met | DIN 6527L |
| Series | 5532 |
| MFR Part No. | 05532 012.000 |
| Cutting Direction | Right Hand |
| Cutter Diameter Tolerance | H10 |
| Flute Length | 26.0mm |
| Cutter Style | Square End |
| Flute Type | Helical |
| End Mill Type | End Mill |
| Milling Cutter Type | End Mills |
| Plunge Type | Centre Cutting |
| Shank Diameter | 12.0mm |
| Finish/Coating | Fire |
| Product Type | End Mills |
| Material | Carbide |
| Cutter Diameter | 12.0mm |
| ISO Category | S |
| Shank Type | Weldon Flat |
| Coolant Delivery | External |
| System of Measurement | Metric |
