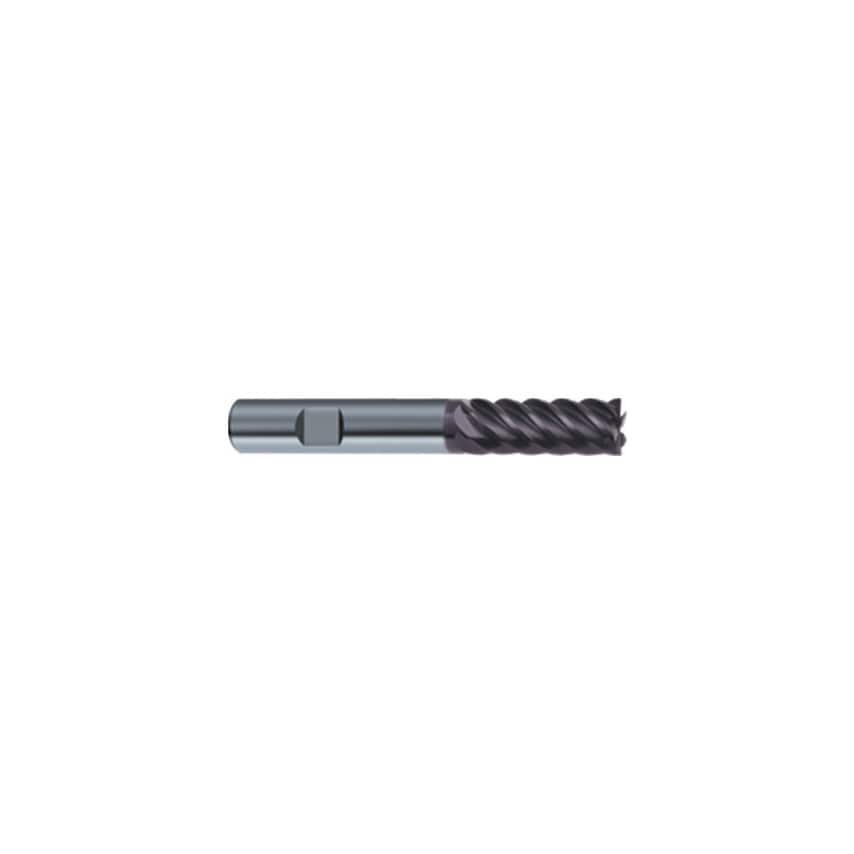

Guhring 5545 End Mills (Multi Fluted) are manufactured from a rigid carbide substrate giving them increased strength when machining. Their durable FIREX coating helps to provide the tool with improved heat and wear resistance prolonging performance and tool lifespan.
Features and Benefits
Hard carbide construction for improved rigidity
Durable FIREX coating prolongs tool life
Heat and wear resisitant properties for optimal performance
Specifications
Tool material:- VHM
Surface finish:- FIREX Coated
Carbide grade:- K - P
Type:- NH
Cutting direction:- Right Hand
Cooling:- Without coolant
Tolerance:- H10
Shank design:- DIN 6535-HB
Standards - DIN 6527L
Helix angle:- 45 degrees
Typical Applications
Milling
Steel
Stainless steel
Steel alloys
| Flute Type | Helical |
| Material | Carbide |
| Number of Flutes | 6 |
| Coolant Delivery | External |
| Cutter Style | Square End |
| Finish/Coating | FIREX\u00a9 |
| System of Measurement | Metric |
| Flute Length | 13.0mm |
| Shank Diameter | 6.0mm |
| Helix Angle | 45\u00b0 |
| ISO Category | S |
| Standards Met | DIN 6527L |
| Overall Length | 57.0mm |
| End Mill Type | End Mill |
| Cutter Diameter Tolerance | H10 |
| Length Type | Regular |
| Cutter Diameter | 6.0mm |
| Shank Type | Weldon Flat |
| Product Type | End Mills |
| Type | NH |
| Series | 5545 |
| Cutting Direction | Right Hand |
| Milling Cutter Type | End Mills |
| Plunge Type | Centre Cutting |
| Shank Diameter Tolerance | H6 |
| MFR Part No. | 05545 006.000 |
