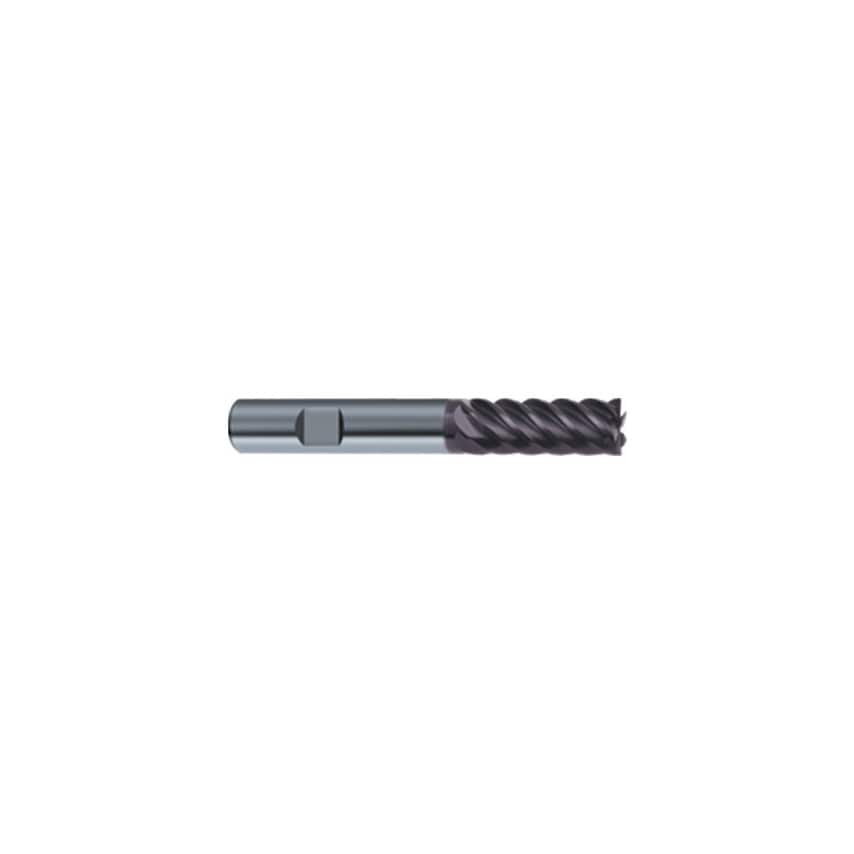

Guhring 5545 End Mills (Multi Fluted) are manufactured from a rigid carbide substrate giving them increased strength when machining. Their durable FIREX coating helps to provide the tool with improved heat and wear resistance prolonging performance and tool lifespan.
Features and Benefits
Hard carbide construction for improved rigidity
Durable FIREX coating prolongs tool life
Heat and wear resisitant properties for optimal performance
Specifications
Tool material:- VHM
Surface finish:- FIREX Coated
Carbide grade:- K - P
Type:- NH
Cutting direction:- Right Hand
Cooling:- Without coolant
Tolerance:- H10
Shank design:- DIN 6535-HB
Standards - DIN 6527L
Helix angle:- 45 degrees
Typical Applications
Milling
Steel
Stainless steel
Steel alloys
| Plunge Type | Centre Cutting |
| Type | NH |
| Coolant Delivery | External |
| Cutter Style | Square End |
| Helix Angle | 45\u00b0 |
| Shank Type | Weldon Flat |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Product Type | End Mills |
| Cutter Diameter | 20.0mm |
| Standards Met | DIN 6527L |
| Milling Cutter Type | End Mills |
| Corner Radius | 0.15mm |
| Finish/Coating | FIREX\u00a9 |
| Series | 5545 |
| MFR Part No. | 05545 020.000 |
| ISO Category | S |
| Material | Carbide |
| Length Type | Regular |
| Cutter Diameter Tolerance | H10 |
| Flute Length | 38.0mm |
| Number of Flutes | 8 |
| Shank Diameter | 20.0mm |
| System of Measurement | Metric |
| Overall Length | 104.0mm |
| End Mill Type | End Mill |
| Shank Diameter Tolerance | H6 |
