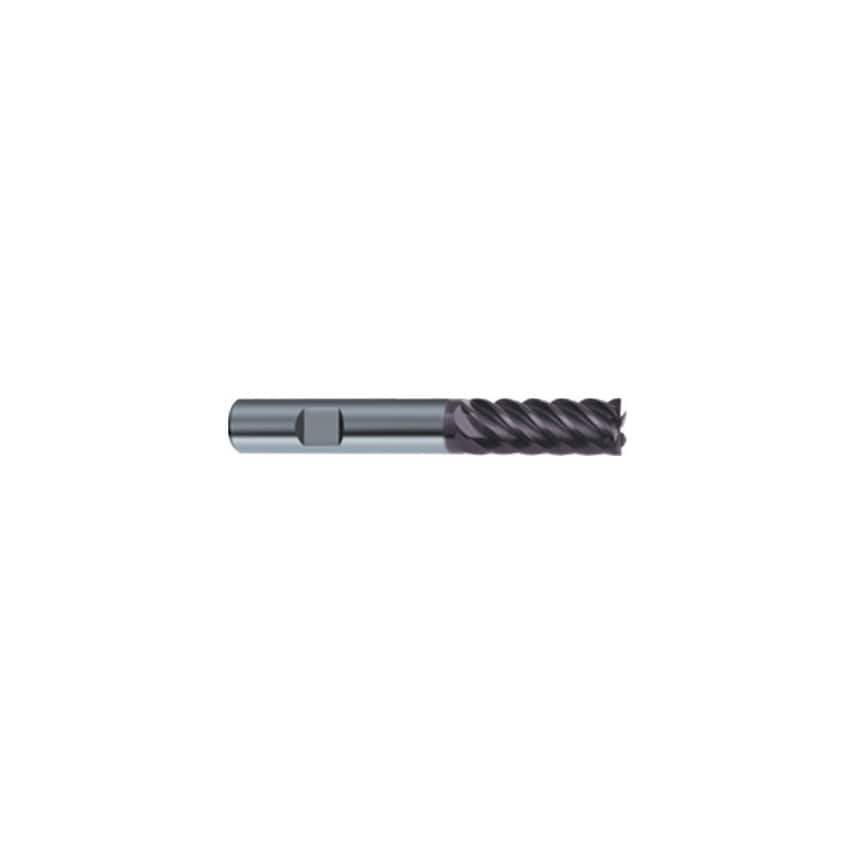

Guhring 5545 End Mills (Multi Fluted) are manufactured from a rigid carbide substrate giving them increased strength when machining. Their durable FIREX coating helps to provide the tool with improved heat and wear resistance prolonging performance and tool lifespan.
Features and Benefits
Hard carbide construction for improved rigidity
Durable FIREX coating prolongs tool life
Heat and wear resisitant properties for optimal performance
Specifications
Tool material:- VHM
Surface finish:- FIREX Coated
Carbide grade:- K - P
Type:- NH
Cutting direction:- Right Hand
Cooling:- Without coolant
Tolerance:- H10
Shank design:- DIN 6535-HB
Standards - DIN 6527L
Helix angle:- 45 degrees
Typical Applications
Milling
Steel
Stainless steel
Steel alloys
| Type | NH |
| Flute Length | 32mm |
| Shank Diameter | 18mm |
| Length Type | Regular |
| Material | Carbide |
| Finish/Coating | FIREX\u00a9 |
| Overall Length | 92mm |
| System of Measurement | Metric |
| ISO Category | S |
| MFR Part No. | 05545 018.000 |
| Shank Type | Weldon Flat |
| Cutting Direction | Right Hand |
| Corner Radius | 0.15mm |
| Number of Flutes | 8 |
| Series | 5545 |
| Product Type | End Mills |
| Helix Angle | 45\u00b0 |
| Cutter Diameter | 18mm |
| Coolant Delivery | External |
| Cutter Style | Square End |
| Shank Diameter Tolerance | H6 |
| Standards Met | DIN 6527L |
| End Mill Type | End Mill |
| Plunge Type | Centre Cutting |
| Milling Cutter Type | End Mills |
| Cutter Diameter Tolerance | H10 |
| Flute Type | Helical |
