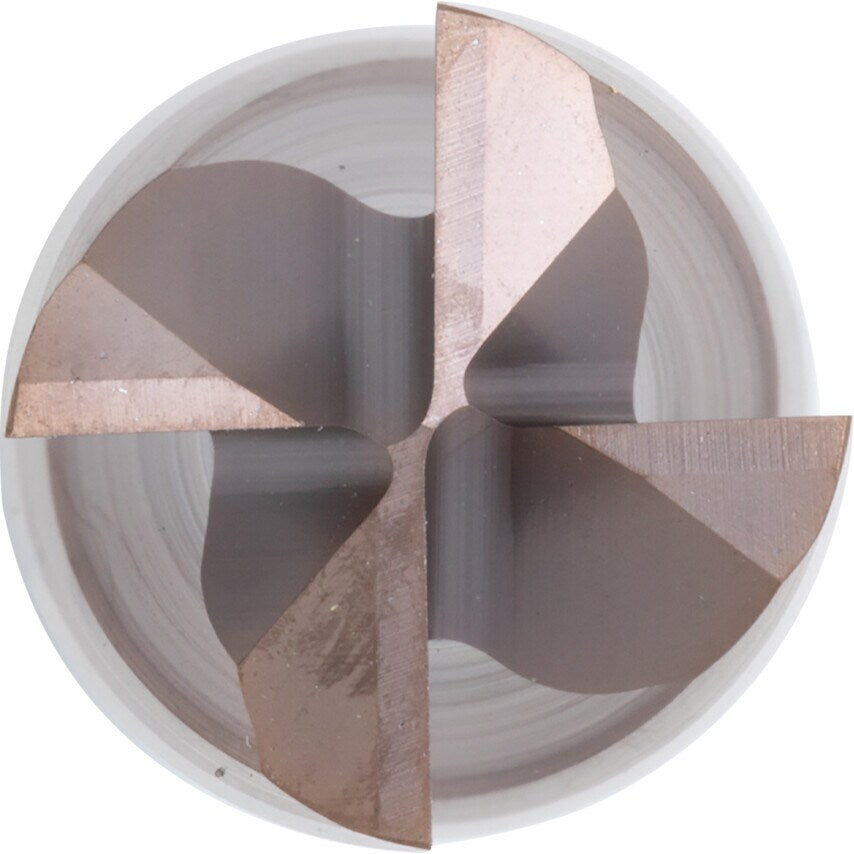

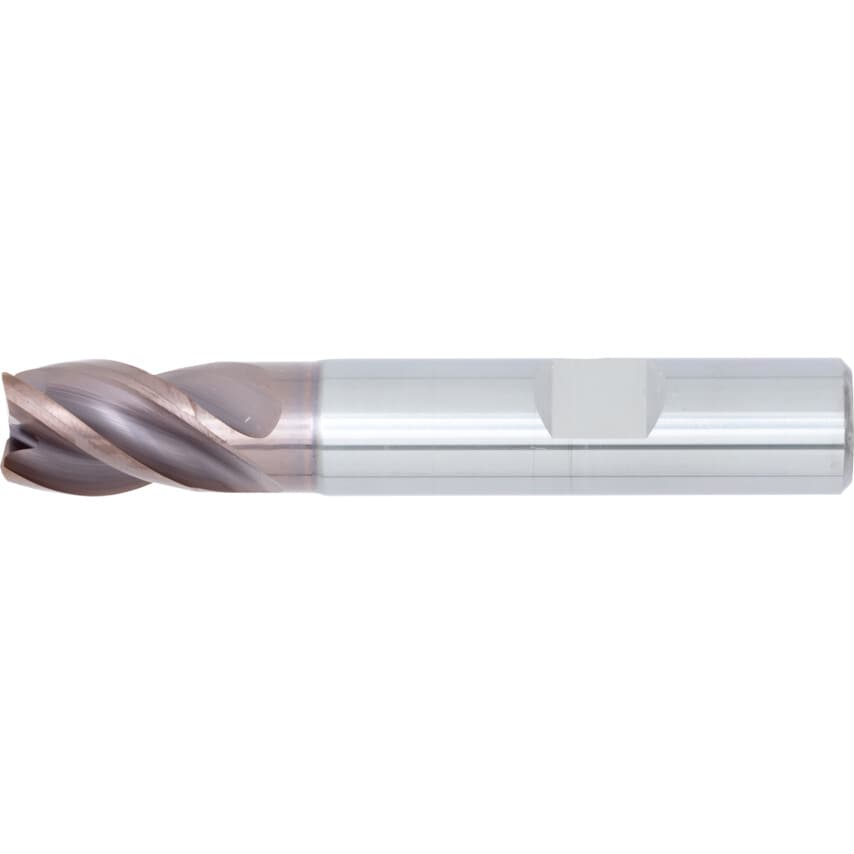

Guhring 5545 End Mills (Multi Fluted) are manufactured from a rigid carbide substrate giving them increased strength when machining. Their durable FIREX coating helps to provide the tool with improved heat and wear resistance prolonging performance and tool lifespan.
Features and Benefits
Hard carbide construction for improved rigidity
Durable FIREX coating prolongs tool life
Heat and wear resisitant properties for optimal performance
Specifications
Tool material:- VHM
Surface finish:- FIREX Coated
Carbide grade:- K - P
Type:- NH
Cutting direction:- Right Hand
Cooling:- Without coolant
Tolerance:- H10
Shank design:- DIN 6535-HB
Standards - DIN 6527L
Helix angle:- 45 degrees
Typical Applications
Milling
Steel
Stainless steel
Steel alloys
| End Mill Type | End Mill |
| Corner Radius | 0.1mm |
| Finish/Coating | FIREX\u00a9 |
| Helix Angle | 45\u00b0 |
| Plunge Type | Centre Cutting |
| MFR Part No. | 05545 008.000 |
| Cutter Diameter | 8.0mm |
| Shank Type | Weldon Flat |
| Cutter Diameter Tolerance | H10 |
| Type | NH |
| Number of Flutes | 6 |
| Flute Length | 19.0mm |
| Milling Cutter Type | End Mills |
| ISO Category | S |
| Coolant Delivery | External |
| Standards Met | DIN 6527L |
| Shank Diameter Tolerance | H6 |
| Material | Carbide |
| Overall Length | 63.0mm |
| Shank Diameter | 8.0mm |
| Cutter Style | Square End |
| Cutting Direction | Right Hand |
| Length Type | Regular |
| System of Measurement | Metric |
| Product Type | End Mills |
| Flute Type | Helical |
| Series | 5545 |
