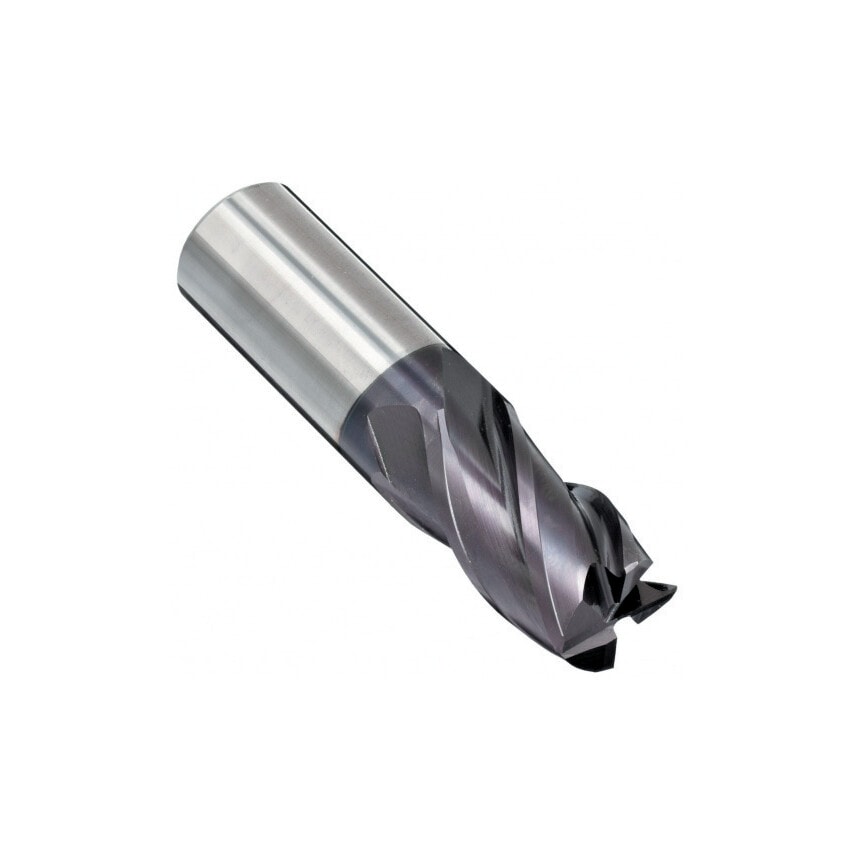

Series 5556 Carbide Standard Length End Mill
Metric
Cut Type: Center Cutting.
Finish Types: FIREX Coated
Carbide Grade : K/P.
Helix Angle: 30 degree.
Material Type: Solid carbide.
Model: 5556.
4 Flute
Application - common structural steels, free-cutting steels, case hardened steels, unalloyed heat-treatable steels, nitriding steels, spheroidal graphite iron.
| Coolant Delivery | External |
| Product Type | End Mills |
| Standards Met | DIN 6535 |
| Shank Type | Plain Round |
| Cutting Direction | Right Hand |
| MFR Part No. | 05556 018.000 |
| Number of Flutes | 4 |
| Shank Diameter | 18.0mm |
| Flute Type | Helical |
| ISO Category | P |
| Milling Cutter Type | End Mills |
| Shank Diameter Tolerance | H6 |
| End Mill Type | End Mill |
| Plunge Type | Centre Cutting |
| Cutter Diameter | 18.0mm |
| Helix Angle | 30\u00b0 |
| Cutter Style | Square End |
| Series | 5556 |
| Corner Radius | 1.5mm |
| Flute Length | 65.0mm |
| Finish/Coating | FIREX\u00a9 |
| Overall Length | 150.0mm |
| Length Type | Regular |
| System of Measurement | Metric |
| Cutter Diameter Tolerance | H10 |
| Material | Carbide |
