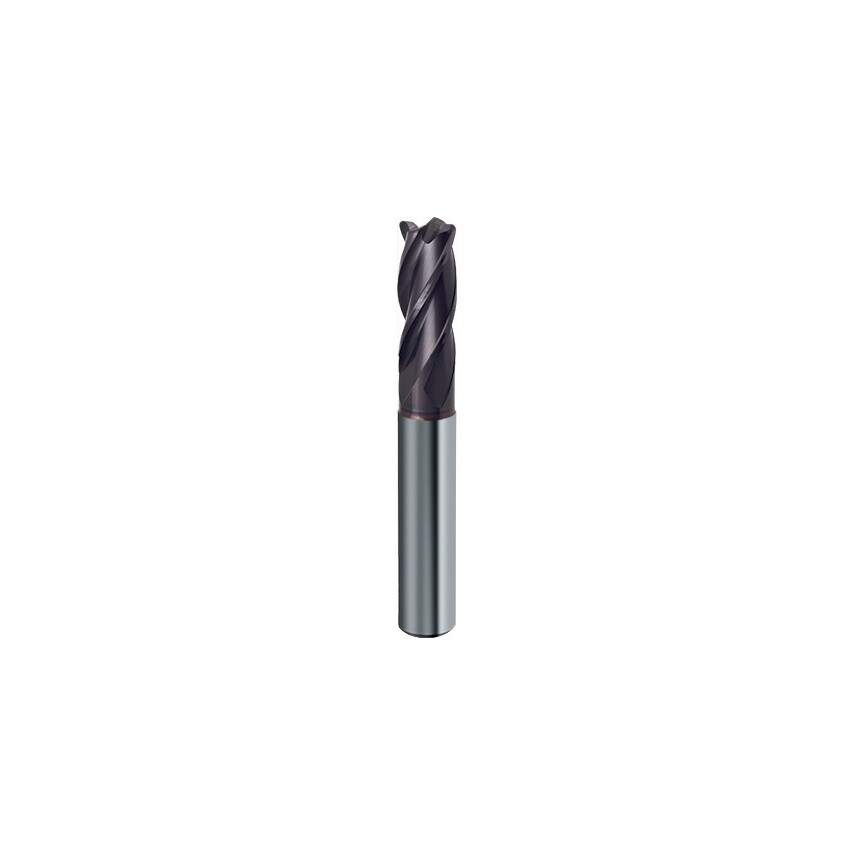

Series 3562 Carbide Roughing End Mills With Corner Radius
Carbide general purpose standard length endmill with corner radius for slotting, ramping,finishing,roughing and copying
Metric
DIN 6527L
Helix angle 30
Firex coating
4 Flute
Centre cutting
9 Rake angle
| Material | Carbide |
| Corner Radius | 2mm |
| Applications | Finishing |
| Standards Met | DIN 6527L |
| Cutter Style | Corner Radius |
| Flute Length | 38mm |
| Number of Flutes | 4 |
| ISO Category | S |
| System of Measurement | Metric |
| Finish/Coating | Firex |
| Cutter Diameter | 20mm |
| Overall Length | 104mm |
| Product Type | End Mills |
| Cutting Direction | Right Hand |
| Length Type | Regular |
| Plunge Type | Centre Cutting |
| End Mill Type | End Mill | Roughing |
| MFR Part No. | 03562 020.020 |
| Cutter Diameter Tolerance | H10 |
| Shank Diameter | 20mm |
| Helix Angle | 30\u00b0 |
| Shank Type | Plain Round |
| Flute Type | Helical |
| Coolant Delivery | External |
| Series | 3562 |
