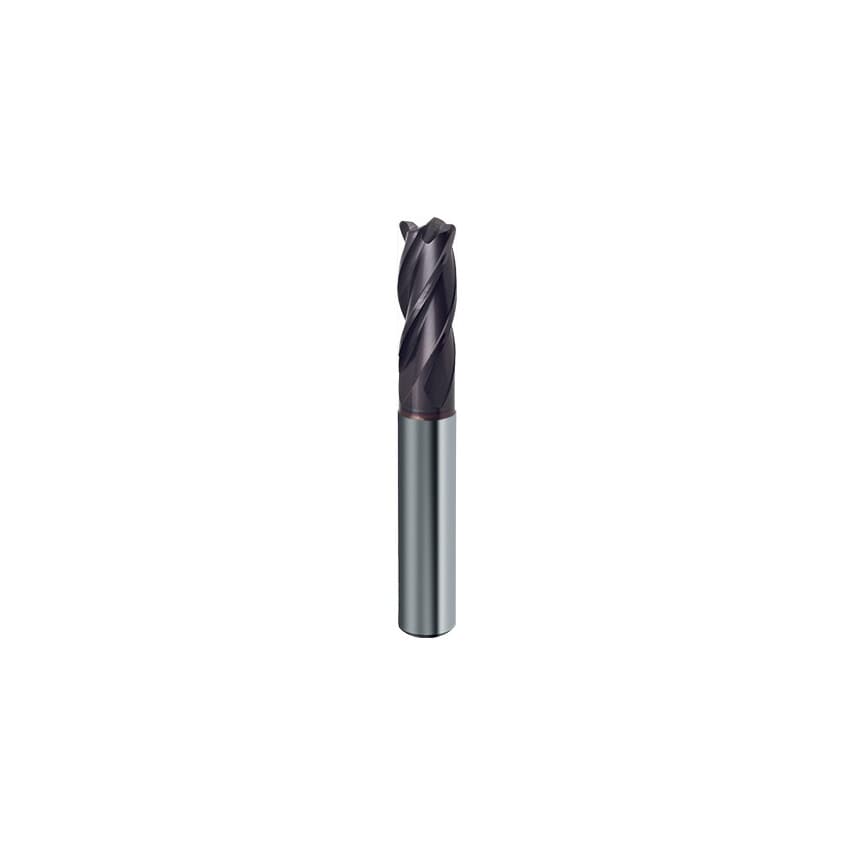

Series 3562 Carbide Roughing End Mills With Corner Radius
Carbide general purpose standard length endmill with corner radius for slotting, ramping,finishing,roughing and copying
Metric
DIN 6527L
Helix angle 30
Firex coating
4 Flute
Centre cutting
9 Rake angle
| Finish/Coating | Firex |
| MFR Part No. | 03562 008.020 |
| Corner Radius | 2mm |
| End Mill Type | End Mill | Roughing |
| Cutter Diameter | 8mm |
| Standards Met | DIN 6527L |
| Number of Flutes | 4 |
| Flute Length | 19mm |
| Material | Carbide |
| Product Type | End Mills |
| Overall Length | 63mm |
| Applications | Finishing |
| Cutter Style | Corner Radius |
| Length Type | Regular |
| Plunge Type | Centre Cutting |
| Series | 3562 |
| Shank Diameter | 8mm |
| Helix Angle | 30\u00b0 |
| Cutting Direction | Right Hand |
| Shank Type | Plain Round |
| ISO Category | S |
| Cutter Diameter Tolerance | H10 |
| Flute Type | Helical |
| System of Measurement | Metric |
| Coolant Delivery | External |
