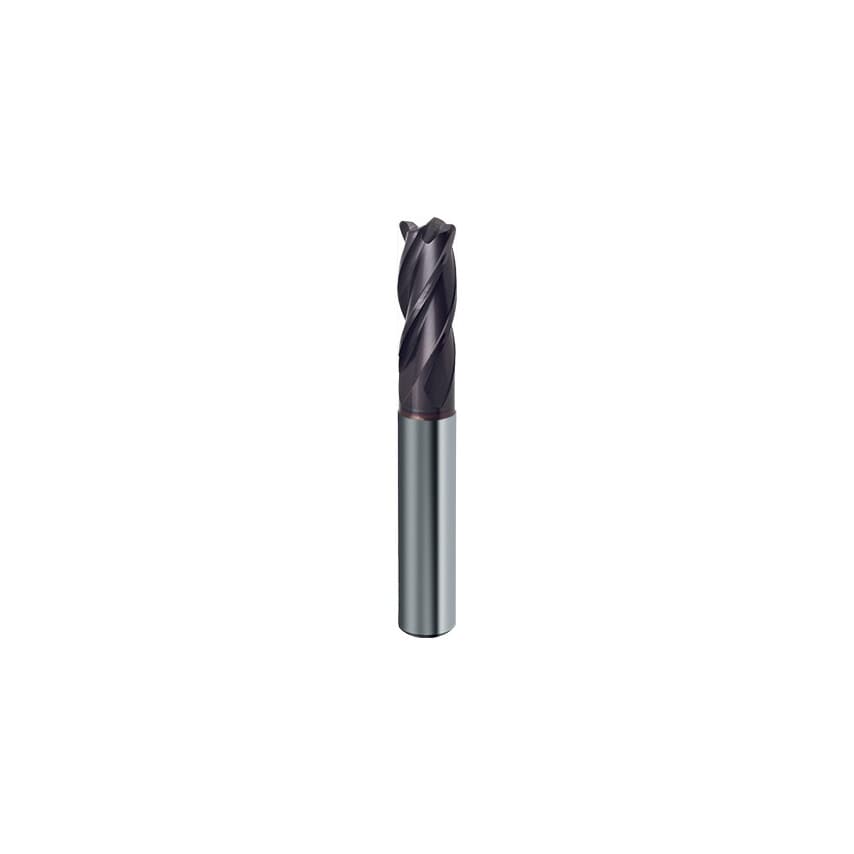

Series 3562 Carbide Roughing End Mills With Corner Radius
Carbide general purpose standard length endmill with corner radius for slotting, ramping,finishing,roughing and copying
Metric
DIN 6527L
Helix angle 30
Firex coating
4 Flute
Centre cutting
9 Rake angle
| Helix Angle | 30\u00b0 |
| System of Measurement | Metric |
| Number of Flutes | 4 |
| Applications | Slotting |
| Shank Type | Plain Round |
| ISO Category | S |
| Shank Diameter | 8.0mm |
| Length Type | Corner Radius |
| Corner Radius | 1.50mm |
| MFR Part No. | TQTC18TA |
| Material | Carbide |
| Finish/Coating | Firex |
| Cutter Style | Corner Radius |
| Plunge Type | Centre Cutting |
| Overall Length | 63.0mm |
| Series | 3562 |
| Product Type | Roughing End Mills |
| End Mill Type | End Mill |
| Flute Type | Helical |
| Cutter Diameter | 8.0mm |
| Standards Met | DIN 6527L |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
| Flute Length | 19.0mm |
