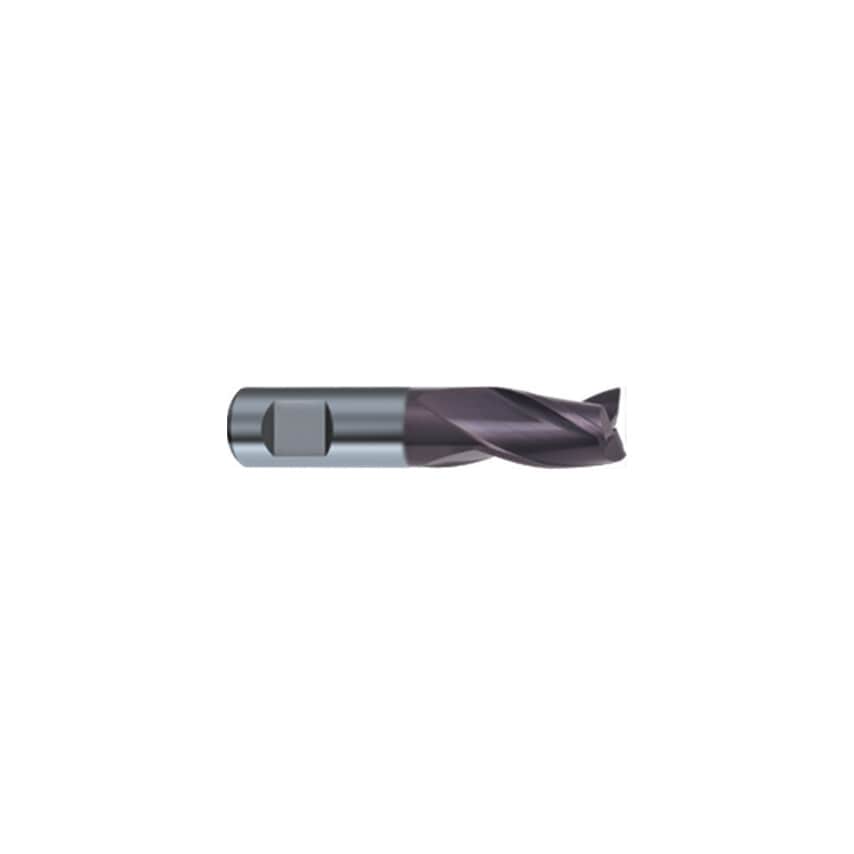

Guhring 5573 3 flute mini slot drills features 3 flutes for effective chip removal and a fire coating for excellent heat and wear resistance.
Features and Benefits
Carbide K10 - K20 for excellent cutting hardness
Fire coating for increased heat and wear resistance
3 flutes for effective chip removal
Typical Applications
Drilling
Standards
Manufactured to Guhring std
DIN 6535-HA/HB
| Length Type | Short |
| Cutter Diameter | 5mm |
| Flute Type | Helical |
| Milling Cutter Type | Slot Drill |
| Coolant Delivery | External |
| Material | Carbide |
| Series | 5573 |
| Cutter Diameter Tolerance | H10 |
| Overall Length | 39.0mm |
| MFR Part No. | 05573 005.000 |
| Product Type | Mini Slot Drill |
| Flute Length | 8mm |
| Number of Flutes | 3 |
| Shank Diameter | 6mm |
| Finish/Coating | Fire |
| Standards Met | Guhring Standard |
| Cutting Direction | Right Hand |
| Shank Type | Weldon Flat |
| Cutter Style | Square End |
| End Mill Type | Slot Drill |
| System of Measurement | Metric |
