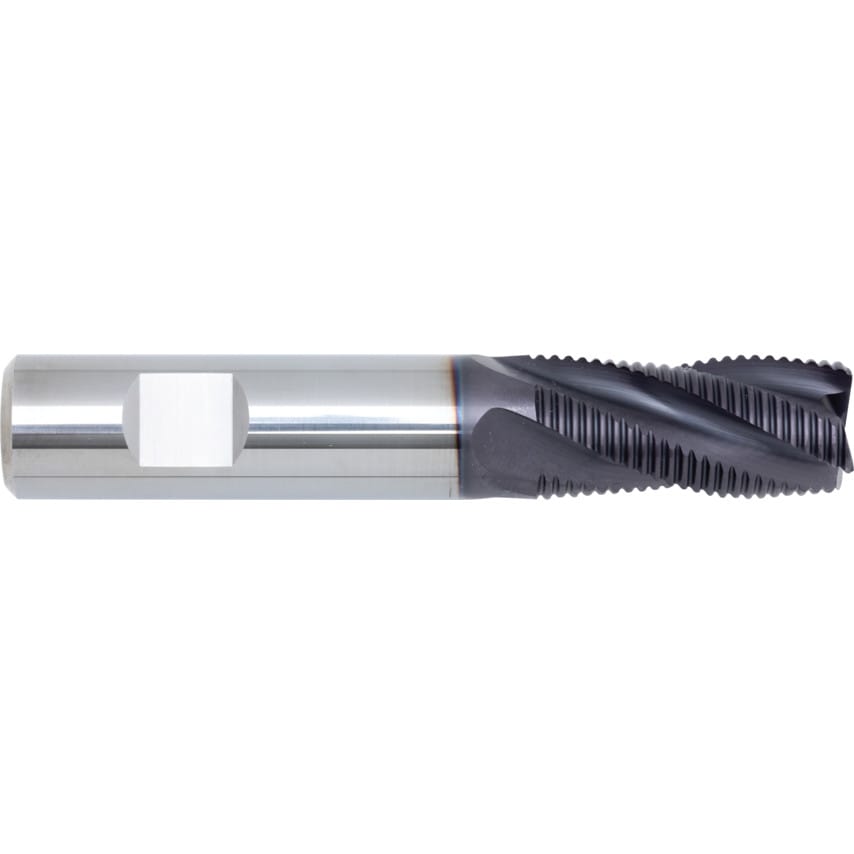

5504 Series are Carbide roughing end mill for slotting, roughing and ramping with fine teeth for a refined finish. The FIREX coated finish helps aid durability whilst the weldon flattened shank helps prevent the tool from rotating during operation.
Features and Benefits
Carbide construction enables faster speeds and durability at high temperatures
FIREX coating for increased durability

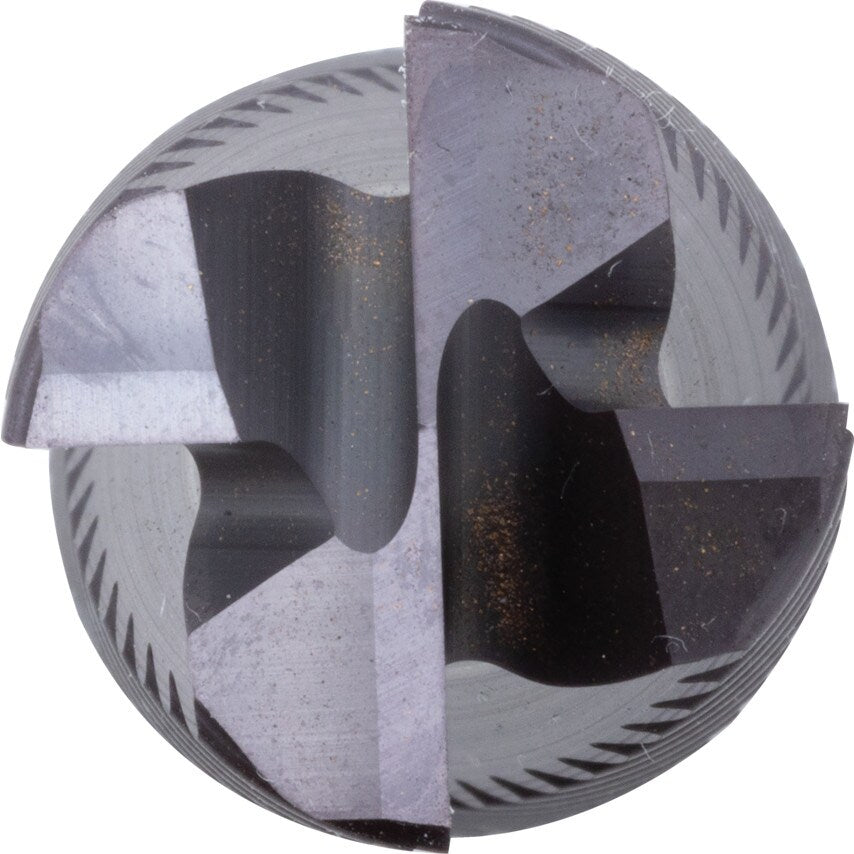

Fine teeth for a more refined finish
Weldon flatted shank helps prevent tool rotation during operation
Specifications
30 helix
4 flutes
Manufactured to DIN 6527L
Metric sizes 6.00mm to 20.00mm
Typical Applications
Shoulder milling
Slotting
Roughing
Ramping
| Coolant Delivery | External |
| System of Measurement | Metric |
| Shank Type | Weldon Flat |
| Product Type | Carbide Roughing End Mill |
| Flute Type | Helical |
| Plunge Type | Centre Cutting |
| Cutter Style | Square End |
| Helix Angle | 30\u00b0 |
| Cutter Diameter Tolerance | H10 |
| Finish/Coating | Fire |
| Shank Diameter Tolerance | H6 |
| Flute Length | 32.0mm |
| End Mill Type | Slot Drill |
| MFR Part No. | 05504 016.000 |
| Length Type | Regular |
| Milling Cutter Type | Slot Drill |
| Number of Flutes | 4 |
| Material | Carbide |
| Milling Application | Slotting |
| Cutter Diameter | 16.0mm |
| Shank Diameter | 16.0mm |
| Overall Length | 92.0mm |
| Series | 5504 |
| Standards Met | DIN 6527L |
| Cutting Direction | Right Hand |
