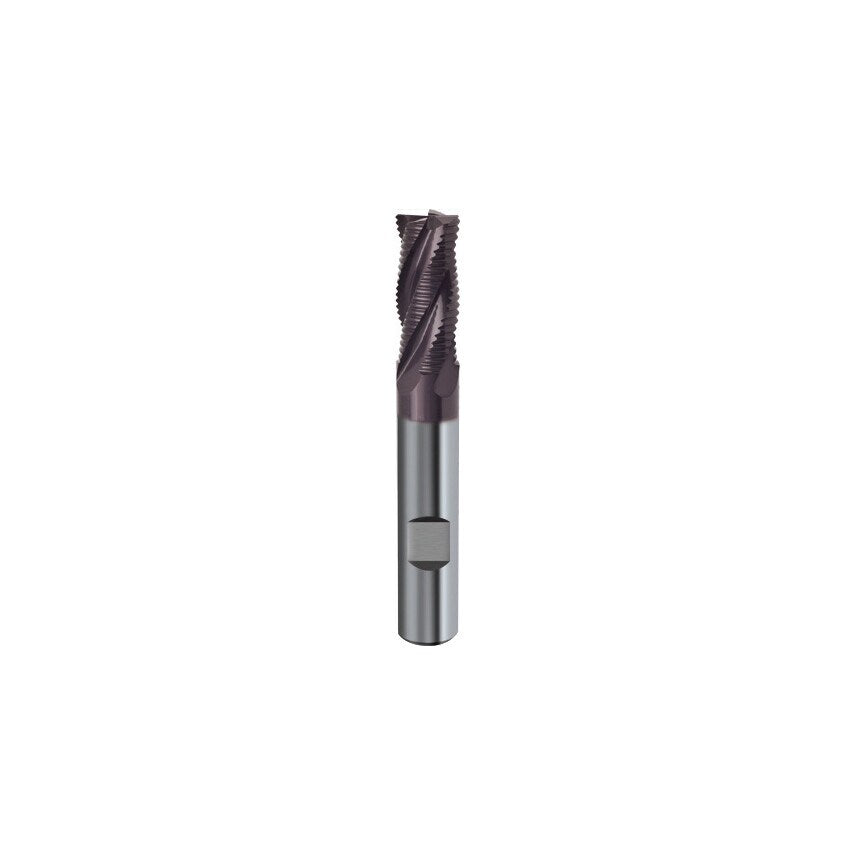

5504 Series are Carbide roughing end mill for slotting, roughing and ramping with fine teeth for a refined finish. The FIREX coated finish helps aid durability whilst the weldon flattened shank helps prevent the tool from rotating during operation.
Features and Benefits
Carbide construction enables faster speeds and durability at high temperatures
FIREX coating for increased durability
Fine teeth for a more refined finish
Weldon flatted shank helps prevent tool rotation during operation
Specifications
30 helix
4 flutes
Manufactured to DIN 6527L
Metric sizes 6.00mm to 20.00mm
Typical Applications
Shoulder milling
Slotting
Roughing
Ramping
| Flute Type | Helical |
| Helix Angle | 30\u00b0 |
| Standards Met | DIN 6527L |
| Cutter Diameter | 6.0mm |
| Milling Application | Shoulder Milling |
| Milling Cutter Type | Slot Drill |
| Series | 5504 |
| Cutter Style | Square End |
| Length Type | Regular |
| Overall Length | 57.0mm |
| Number of Flutes | 4 |
| Coolant Delivery | External |
| MFR Part No. | 05504 006.000 |
| Finish/Coating | Fire |
| Shank Type | Weldon Flat |
| Cutting Direction | Right Hand |
| Material | Carbide |
| End Mill Type | Slot Drill |
| Shank Diameter | 6.0mm |
| Flute Length | 13.0mm |
| Shank Diameter Tolerance | H6 |
| Product Type | Carbide Roughing End Mill |
| Cutter Diameter Tolerance | H10 |
| Plunge Type | Centre Cutting |
| System of Measurement | Metric |
