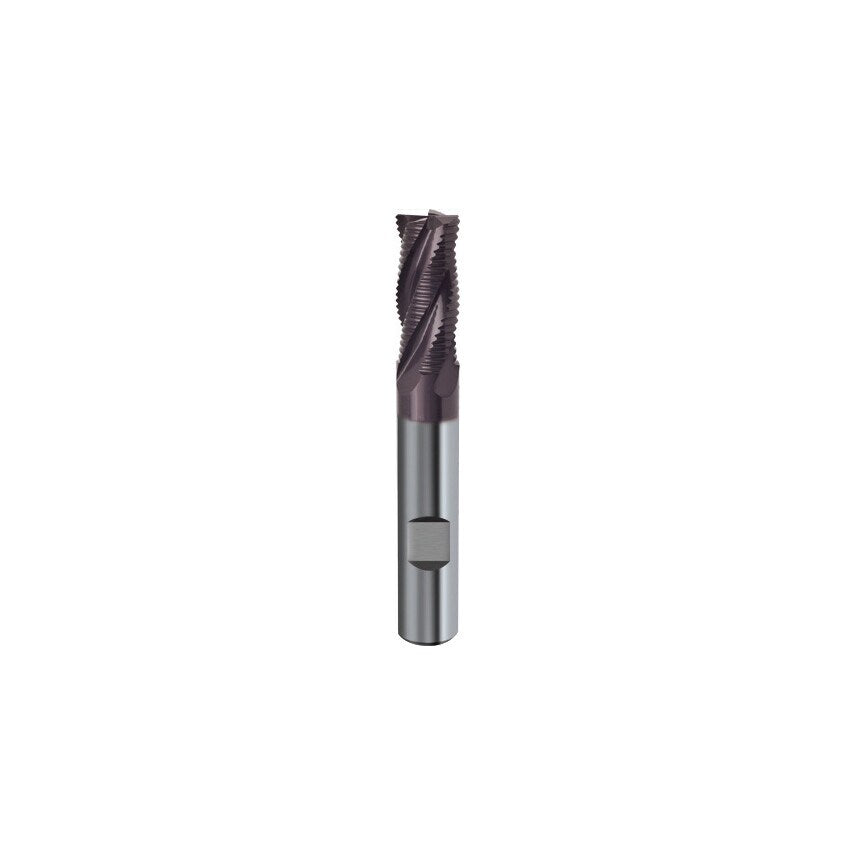

5504 Series are Carbide roughing end mill for slotting, roughing and ramping with fine teeth for a refined finish. The FIREX coated finish helps aid durability whilst the weldon flattened shank helps prevent the tool from rotating during operation.
Features and Benefits
Carbide construction enables faster speeds and durability at high temperatures
FIREX coating for increased durability
Fine teeth for a more refined finish
Weldon flatted shank helps prevent tool rotation during operation
Specifications
30 helix
4 flutes
Manufactured to DIN 6527L
Metric sizes 6.00mm to 20.00mm
Typical Applications
Shoulder milling
Slotting
Roughing
Ramping
| MFR Part No. | 05504 010.000 |
| End Mill Type | Slot Drill |
| Cutting Direction | Right Hand |
| Milling Application | Roughing |
| System of Measurement | Metric |
| Standards Met | DIN 6527L |
| Cutter Style | Square End |
| Number of Flutes | 4 |
| Shank Diameter | 10.0mm |
| Product Type | Carbide Roughing End Mill |
| Finish/Coating | Fire |
| Shank Type | Weldon Flat |
| Overall Length | 72.0mm |
| Material | Carbide |
| Helix Angle | 30\u00b0 |
| Length Type | Regular |
| Flute Length | 22.0mm |
| Cutter Diameter Tolerance | H10 |
| Milling Cutter Type | Slot Drill |
| Shank Diameter Tolerance | H6 |
| Plunge Type | Centre Cutting |
| Flute Type | Helical |
| Cutter Diameter | 10.0mm |
| Coolant Delivery | External |
| Series | 5504 |
