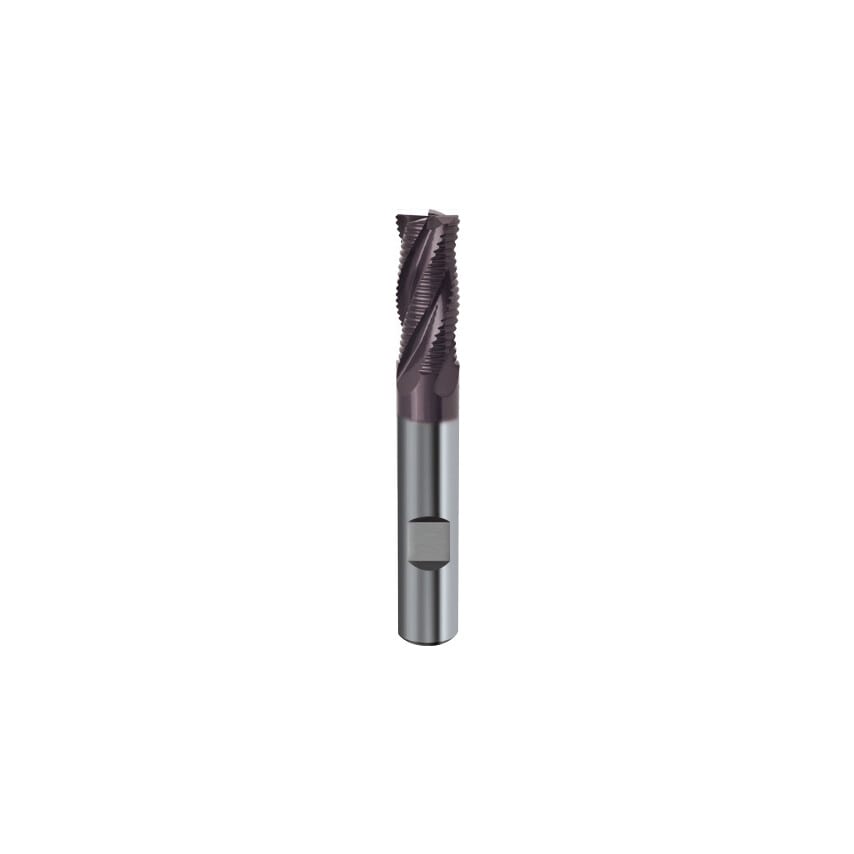

5504 Series are Carbide roughing end mill for slotting, roughing and ramping with fine teeth for a refined finish. The FIREX coated finish helps aid durability whilst the weldon flattened shank helps prevent the tool from rotating during operation.
Features and Benefits
Carbide construction enables faster speeds and durability at high temperatures
FIREX coating for increased durability
Fine teeth for a more refined finish
Weldon flatted shank helps prevent tool rotation during operation
Specifications
30 helix
4 flutes
Manufactured to DIN 6527L
Metric sizes 6.00mm to 20.00mm
Typical Applications
Shoulder milling
Slotting
Roughing
Ramping
| Shank Diameter Tolerance | H6 |
| Shank Diameter | 20mm |
| Number of Flutes | 4 |
| Length Type | Regular |
| Milling Application | Ramping | Roughing | Shoulder Milling | Slotting |
| Cutting Direction | Right Hand |
| Cutter Diameter | 20mm |
| Cutter Diameter Tolerance | H10 |
| Helix Angle | 30\u00b0 |
| Series | 5504 |
| Product Type | End Mills |
| Shank Type | Weldon Flat |
| Coolant Delivery | External |
| Standards Met | DIN 6527L |
| Flute Length | 38mm |
| Material | Carbide |
| Plunge Type | Centre Cutting |
| Overall Length | 104mm |
| System of Measurement | Metric |
| MFR Part No. | 05504 020.000 |
| Milling Cutter Type | Slot Drill |
| Flute Type | Helical |
| Finish/Coating | Fire |
| Cutter Style | Square End |
