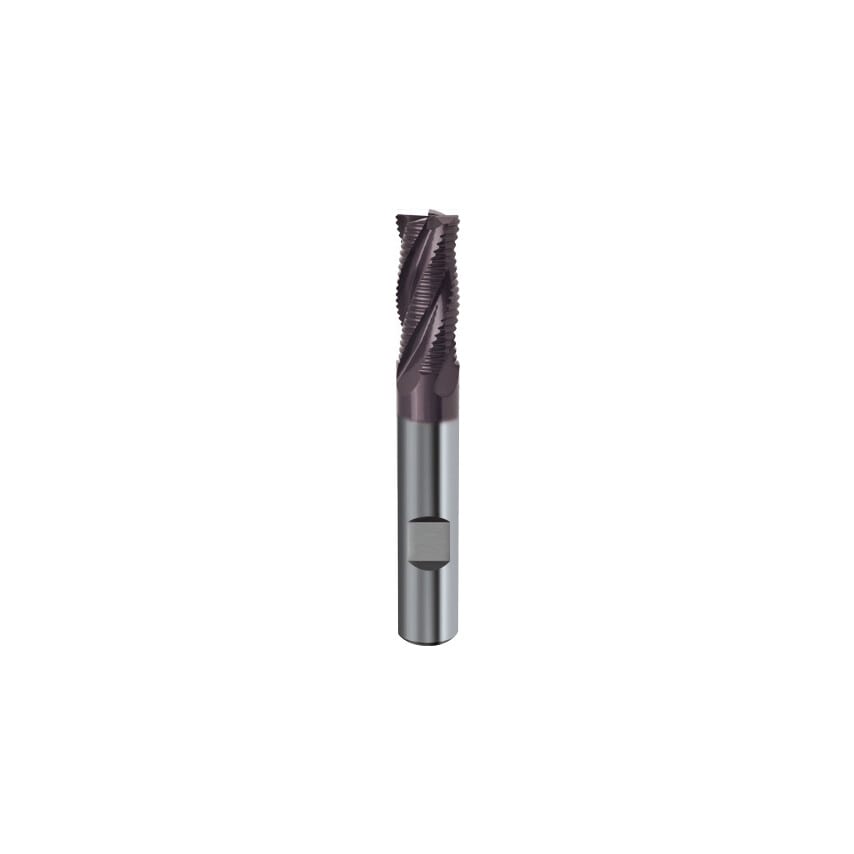

5504 Series are Carbide roughing end mill for slotting, roughing and ramping with fine teeth for a refined finish. The FIREX coated finish helps aid durability whilst the weldon flattened shank helps prevent the tool from rotating during operation.
Features and Benefits
Carbide construction enables faster speeds and durability at high temperatures
FIREX coating for increased durability
Fine teeth for a more refined finish
Weldon flatted shank helps prevent tool rotation during operation
Specifications
30 helix
4 flutes
Manufactured to DIN 6527L
Metric sizes 6.00mm to 20.00mm
Typical Applications
Shoulder milling
Slotting
Roughing
Ramping
| Shank Type | Weldon Flat |
| Helix Angle | 30\u00b0 |
| Cutter Diameter | 18mm |
| Standards Met | DIN 6527L |
| Plunge Type | Centre Cutting |
| Shank Diameter | 18mm |
| End Mill Type | Slot Drill |
| Flute Length | 32mm |
| Shank Diameter Tolerance | H6 |
| Number of Flutes | 4 |
| System of Measurement | Metric |
| Milling Cutter Type | Slot Drill |
| Product Type | Carbide Roughing End Mill |
| Finish/Coating | Fire |
| Overall Length | 92mm |
| Series | 5504 |
| Cutter Style | Square End |
| Length Type | Regular |
| Cutter Diameter Tolerance | H10 |
| MFR Part No. | 05504 018.000 |
| Material | Carbide |
| Milling Application | Shoulder Milling |
| Coolant Delivery | External |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
