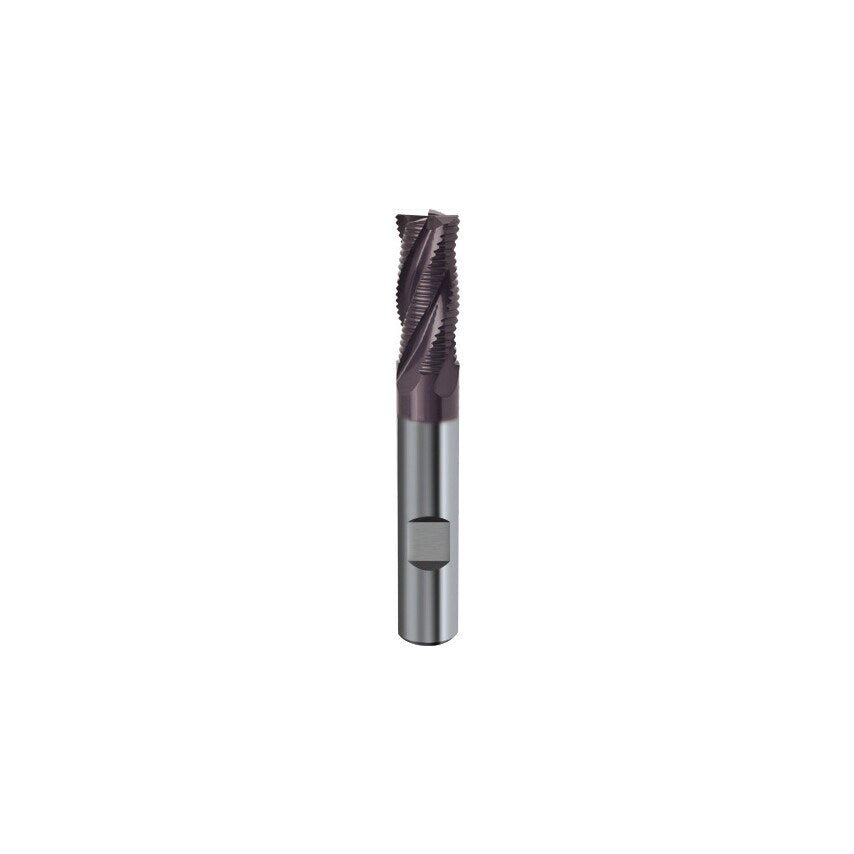

5504 Series are Carbide roughing end mill for slotting, roughing and ramping with fine teeth for a refined finish. The FIREX coated finish helps aid durability whilst the weldon flattened shank helps prevent the tool from rotating during operation.
Features and Benefits
Carbide construction enables faster speeds and durability at high temperatures
FIREX coating for increased durability
Fine teeth for a more refined finish
Weldon flatted shank helps prevent tool rotation during operation
Specifications
30 helix
4 flutes
Manufactured to DIN 6527L
Metric sizes 6.00mm to 20.00mm
Typical Applications
Shoulder milling
Slotting
Roughing
Ramping
| End Mill Type | Slot Drill |
| Cutter Diameter | 12.0mm |
| Finish/Coating | Fire |
| Cutting Direction | Right Hand |
| Helix Angle | 30\u00b0 |
| Plunge Type | Centre Cutting |
| Product Type | Carbide Roughing End Mill |
| System of Measurement | Metric |
| MFR Part No. | 05504 012.000 |
| Milling Application | Slotting |
| Shank Diameter Tolerance | H6 |
| Flute Type | Helical |
| Shank Type | Weldon Flat |
| Length Type | Regular |
| Material | Carbide |
| Overall Length | 83.0mm |
| Coolant Delivery | External |
| Series | 5504 |
| Cutter Diameter Tolerance | H10 |
| Shank Diameter | 12.0mm |
| Standards Met | DIN 6527L |
| Number of Flutes | 4 |
| Flute Length | 26.0mm |
| Milling Cutter Type | Slot Drill |
| Cutter Style | Square End |
