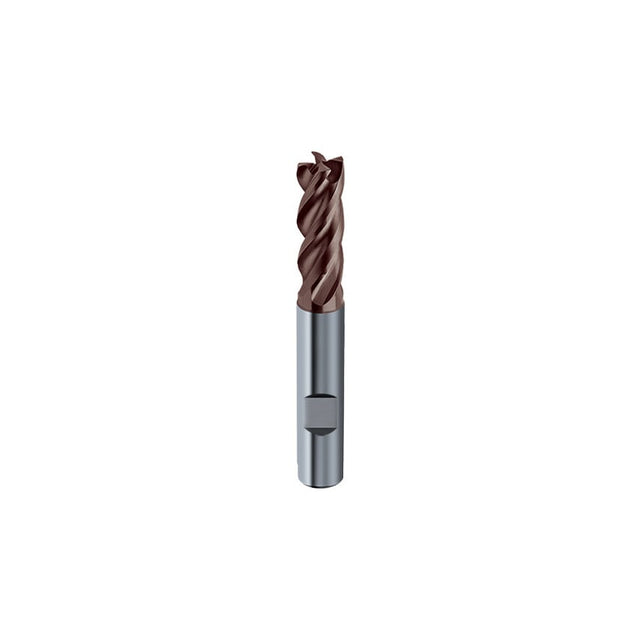

Series 6736 Carbide RF100 Ratio End Mill for use on steel. stainless steel,cast iron,
non-ferrous metals and special, super and titanium alloys.
Can be used for slotting,roughing,ramping,plunging and finishing applications
Metric sizes 4.00mm to 20.00mm
Signum Coating
DIN 6527L
4 flutes
Weldon Shank
Helix angle 36 / 38 / 37
Centre cutting
| Number of Flutes | 4 |
| Cutter Diameter | 13.7mm |
| Length Type | Regular |
| Material | Carbide |
| MFR Part No. | 06736 013.700 |
| Plunge Type | Centre Cutting |
| Shank Type | Weldon Flat |
| Milling Application | Finishing | Plunging | Ramping | Roughing | Slotting |
| Product Type | End Mills |
| Corner Radius | 0.14mm |
| Finish/Coating | Nano-Si \u00ae |
| Series | 6736 |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
| Cutter Diameter Tolerance | H10 |
| Overall Length | 83mm |
| Flute Length | 26mm |
| Flute Type | Helical |
| End Mill Type | End Mill |
| Milling Cutter Type | End Mills |
| Cutter Style | Square End |
| Shank Diameter Tolerance | H6 |
| ISO Category | S |
| System of Measurement | Metric |
| Helix Angle | 36/38/37\u00b0 |
| Standards Met | DIN 6527L |
| Shank Diameter | 14mm |
