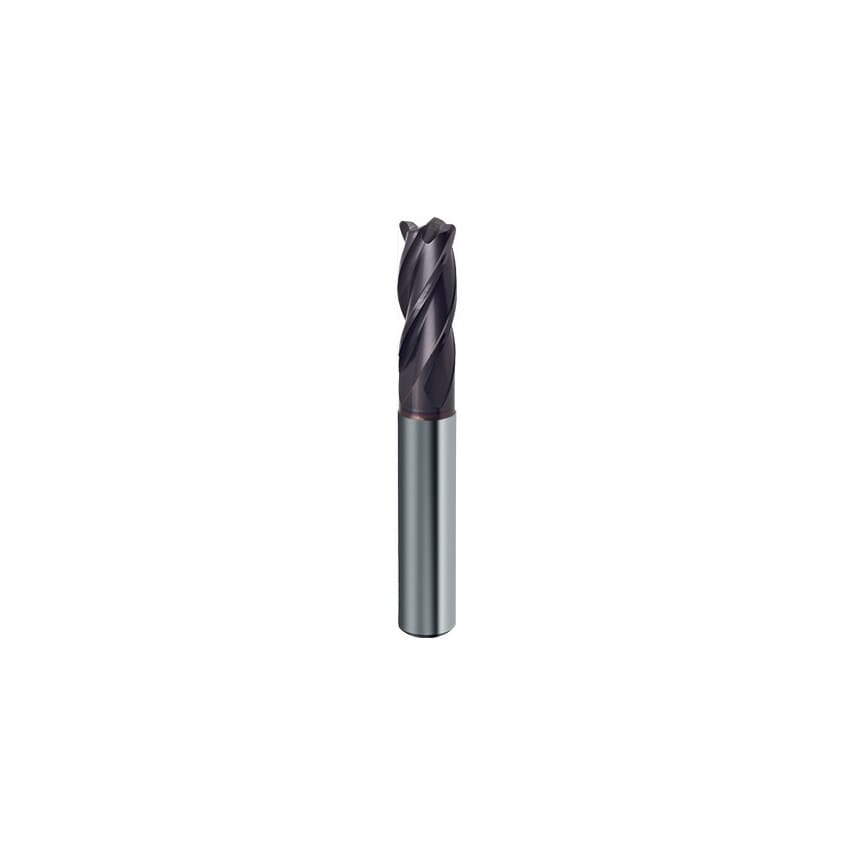

Series 3562 Carbide Roughing End Mills With Corner Radius
Carbide general purpose standard length endmill with corner radius for slotting, ramping,finishing,roughing and copying
Metric
DIN 6527L
Helix angle 30
Firex coating
4 Flute
Centre cutting
9 Rake angle
| Applications | Ramping |
| Cutter Style | Corner Radius |
| Cutter Diameter | 8.0mm |
| Series | 3562 |
| Corner Radius | 1.00mm |
| Overall Length | 63.0mm |
| Product Type | Carbide Roughing End Mill |
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Length Type | Corner Radius |
| System of Measurement | Metric |
| Material | Carbide |
| Flute Length | 19.0mm |
| Number of Flutes | 4 |
| MFR Part No. | 03562 008.010 |
| Standards Met | DIN 6527L |
| Shank Diameter | 8.0mm |
| Helix Angle | 30\u00b0 |
| Finish/Coating | Firex |
| Shank Type | Plain Round |
| Flute Type | Helical |
| Plunge Type | Centre Cutting |
| ISO Category | S |
| End Mill Type | End Mill |
