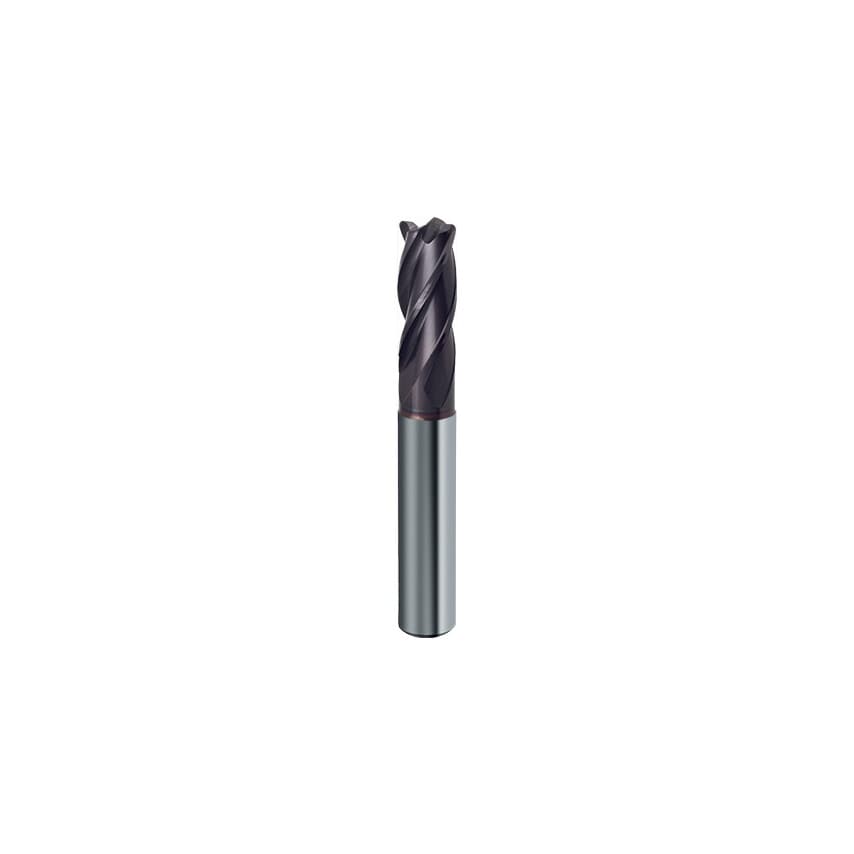

Series 3562 Carbide Roughing End Mills With Corner Radius
Carbide general purpose standard length endmill with corner radius for slotting, ramping,finishing,roughing and copying
Metric
DIN 6527L
Helix angle 30
Firex coating
4 Flute
Centre cutting
9 Rake angle
| Cutting Direction | Right Hand |
| Shank Diameter | 12.0mm |
| Plunge Type | Centre Cutting |
| Helix Angle | 30\u00b0 |
| Number of Flutes | 4 |
| System of Measurement | Metric |
| Corner Radius | 1.00mm |
| ISO Category | S |
| Shank Type | Plain Round |
| Cutter Style | Corner Radius |
| End Mill Type | End Mill |
| Finish/Coating | Firex |
| MFR Part No. | 03562 012.010 |
| Flute Type | Helical |
| Product Type | Carbide Roughing End Mill |
| Series | 3562 |
| Material | Carbide |
| Cutter Diameter | 12.0mm |
| Overall Length | 83.0mm |
| Flute Length | 26.0mm |
| Standards Met | DIN 6527L |
| Coolant Delivery | External |
| Length Type | Corner Radius |
| Applications | Ramping |
