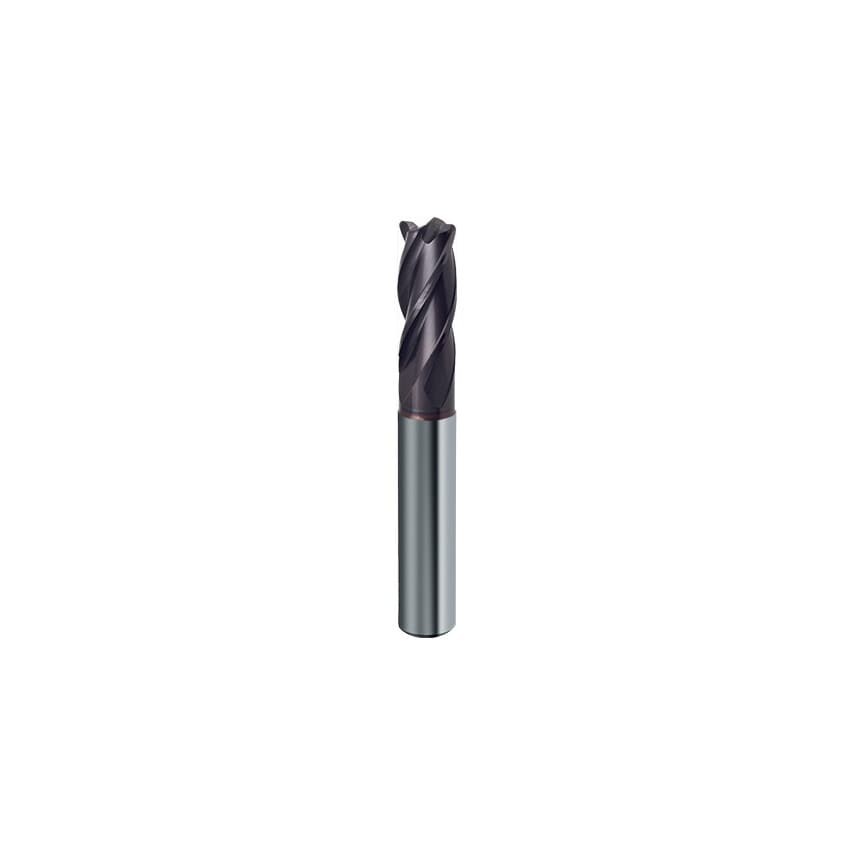

Series 3562 Carbide Roughing End Mills With Corner Radius
Carbide general purpose standard length endmill with corner radius for slotting, ramping,finishing,roughing and copying
Metric
DIN 6527L
Helix angle 30
Firex coating
4 Flute
Centre cutting
9 Rake angle
| Finish/Coating | Firex |
| Coolant Delivery | External |
| Material | Carbide |
| End Mill Type | End Mill |
| Flute Length | 22.0mm |
| Helix Angle | 30\u00b0 |
| System of Measurement | Metric |
| Shank Diameter | 10.0mm |
| Shank Type | Plain Round |
| MFR Part No. | 03562 010.010 |
| Plunge Type | Centre Cutting |
| Cutter Diameter | 10.0mm |
| Series | 3562 |
| Overall Length | 72.0mm |
| Standards Met | DIN 6527L |
| Length Type | Corner Radius |
| ISO Category | S |
| Number of Flutes | 4 |
| Applications | Ramping |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Corner Radius | 1.00mm |
| Product Type | Carbide Roughing End Mill |
| Cutter Style | Corner Radius |
