No. 5527

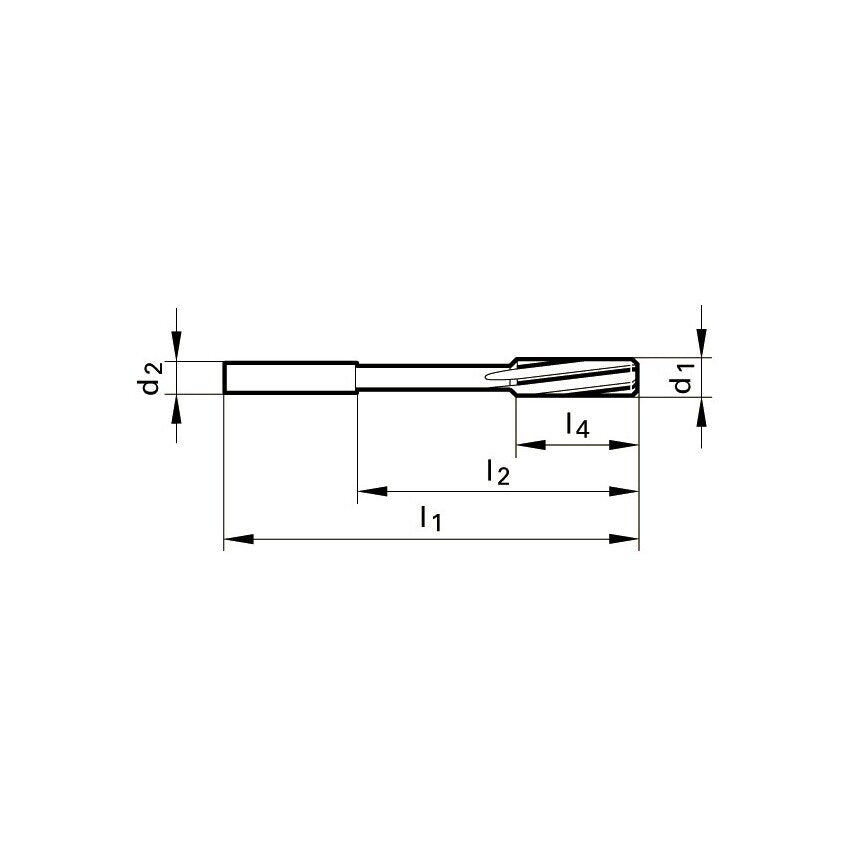

Guhring carbide NC machine chucking reamers are similar to DIN 8093 with straight shank (h6) for standardised tool clamping in hydraulic or shrink fit chucks. The combination of NC machine chucking reamer and hydraulic, high precision clamping or shrink fit chuck respectively offers highest concentricity and process reliability for the production of holes to required tolerances.
Surface finish: bright.
Cutting direction: right hand.
> 4.0mm with highly unequal flute spacing.
Left hand spiral flutes.
Tolerances:
from 0.98 to 5.03mm 0.000/+0.004,
from 5.97 to 12.05mm 0.000/+0.005.
| Material Grade | K10 |
| Reamer Type | Fixed |
| Number of Flutes | 3 |
| Reamer Diameter | 1.51mm |
| Shank Type | Straight |
| Material | Carbide |
| Product Type | Machine Chucking Reamers |
| Flute Length | 9mm |
| Finish/Coating | Bright |
| Flute Type | Left Hand Spiral |
| Overall Length | 50mm |
| MFR Part No. | 1.51 |
| Length Type | Standard Length |
| Diameter Tolerance | 0.000 - +0.004 |
| Cutting Direction | Right Hand |
