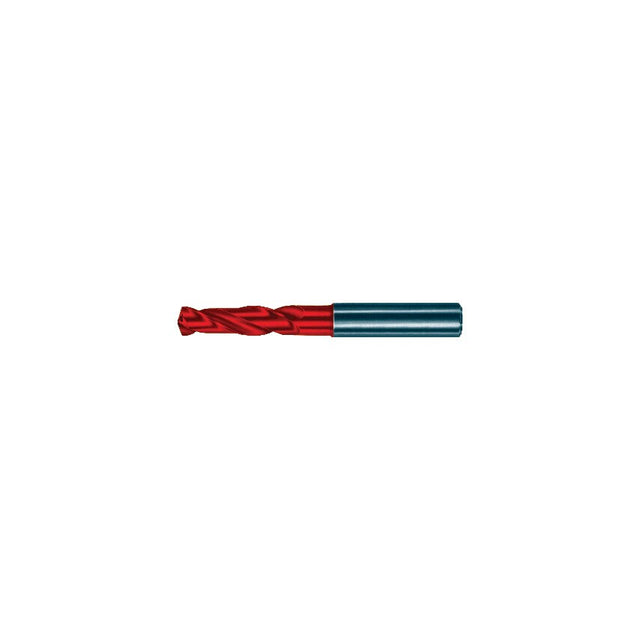

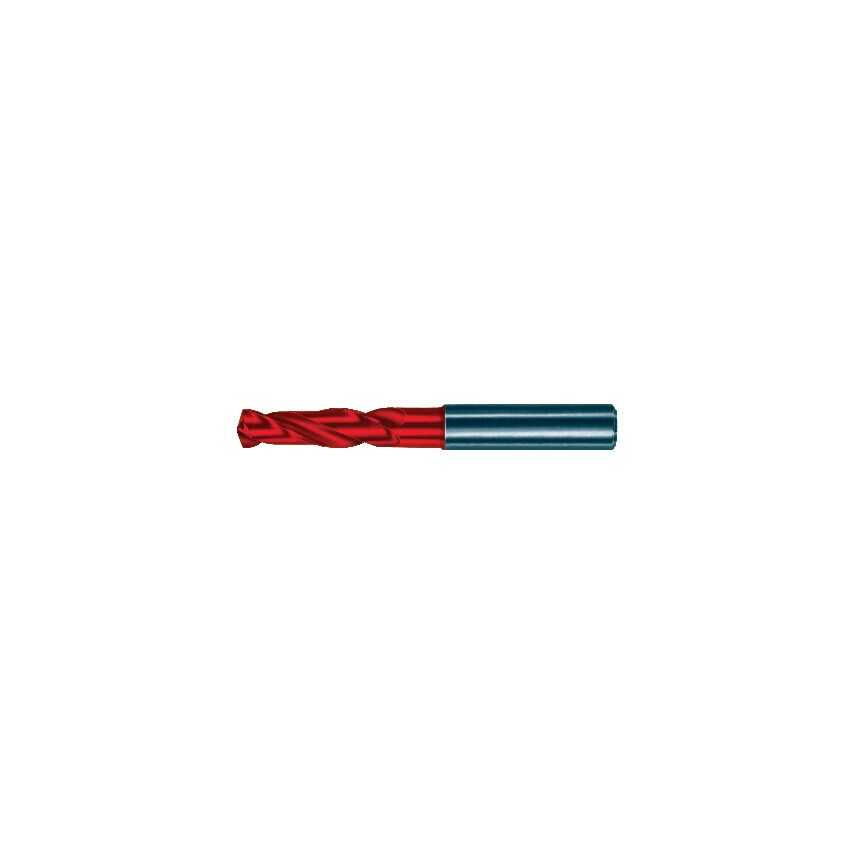

5510 6.10MM Carbide Straight Shank Ratio Drill - FIREX Coated

With a hard carbide construction and a durable FIREX coating with excellent heat and wear resistance, the Guhring 5510 Series is ideal for the drilling of long and short-chipping materials. Effecitive on structural and case hardened steels, cast steels, heat-treatable steels and alloyed steels with a tensile strength of up to app. 1200N/mm2, including carbon steels, bronze, cast iron and high alloyed AISi-alloys. Features and Benefits Hard carbide construction for added strength and rigidity FIREX coating for improved heat and wear resistance Ideal for drilling long and short chipping materials Specifications Self centering 3xD Concave cutting point geometry and web thinning. 140 Point angle Diameter tolerance m7 Shank tolerance h6 Manufactured to DIN 6537 Sizes 3.00mm to 20.00mm Typical Applications Case hardened steel Steel Structural steel Alloyed steels Bronze Cast iron

Finish/Coating	FIREX\u00ae
Series	5510
Drill Diameter Metric	6.1mm
Flute Type	Spiral
Drill Diameter	6.1mm
Standards Met	DIN 6537
Coolant Delivery	Coolant Through
ISO Category	K | P
Cutting Direction	Right Hand
Helix Type	Normal Helix
Material	Carbide
ISO Category Grade	K | P
Shank Diameter Tolerance	H6
Drill Diameter Tolerance	M7
Number of Flutes	2
Carbide Drill Type	Carbide High Performance
Overall Length	79mm
Point Angle	140\u00b0
Flute Length	34mm
MFR Part No.	05510 006.100
Shank Diameter	8mm
