Guhring standard production taps are marked with colour rings to help you quickly and confidently choose the correct tool for your job. Each ring relates to the unique machining behaviours of different materials as dictated by their type and condition.
Manufactured from HSS-E steel to DIN 371.
Spiral flute for blind holes
Blue ring
To form C
Size range M3 to M10
TiN coated
Tolerance to ISO 2/6H

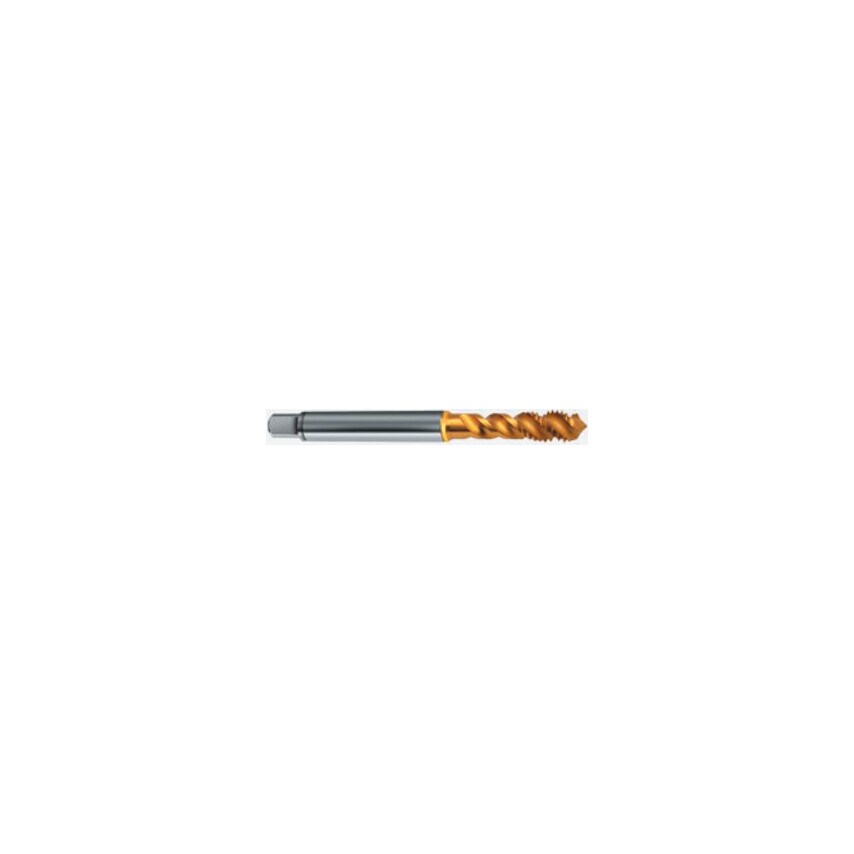

IMAGE IS FOR ILLUSTRATION ONLY
| Dimensions Standard | DIN 371 |
| Coolant Delivery | External |
| Shank Diameter | 6 |
| Thread Size | M6 |
| Helix Angle | 40 |
| Thread Standard | Metric Coarse |
| Ring Colour | Blue |
| Material | Cobalt High Speed Steel |
| Series | 5596 |
| Square Width | 4.9 |
| Tapping Depth | 30 |
| Thread Direction | Right Hand |
| Overall Length | 80cm |
| Number of Flutes | 3 |
| Material Grade | M35 |
| Pitch | 1.0 |
| Tap Type | Spiral Flute |
| Finish/Coating | TiN |
| Thread Length | 11 |
| Class of Fit | ISO2/6H |
