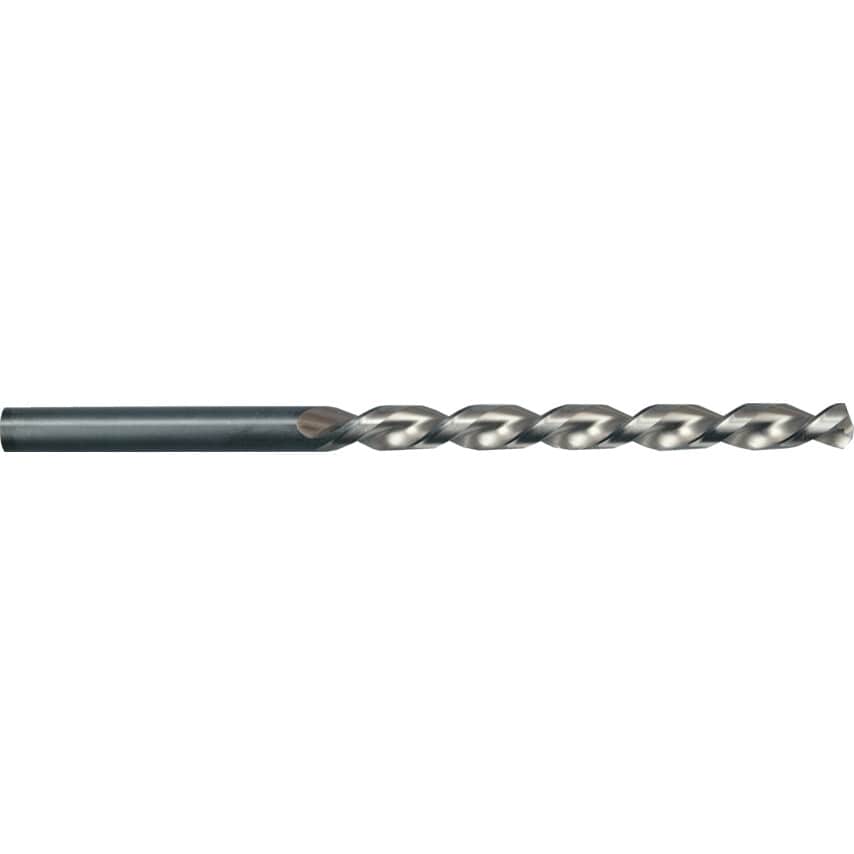

Series 535 HSSHigh Helix (Parabolic Flute) Straight Shank Long Series Drill
Metric
A robust drill for drilling deeper holes in difficult conditions when swarf congestion prevents an adequate flow of coolant from reaching the drill point. For use in steel and cast iron having a hardness of up to 1000N/mm2. Manufactured to DIN 340.
| Flute Type | Parabolic |
| Flute Length | 115mm |
| MFR Part No. | 00535 009.500 |
| System of Measurement | Metric |
| Coolant Delivery | External |
| Overall Length | 175mm |
| Number of Flutes | 2 |
| Drill Diameter | 9.5mm |
| Material | HSS |
| Flute Construction | Ground flutes |
| Series | 535 |
| Shank Diameter Tolerance | H8 |
| Drill Length Type | Long Series |
| Standards Met | DIN 340 |
| Drill Diameter Tolerance | H8 |
| Number of Pieces | 1 |
| Helix Type | High Helix |
| Finish/Coating | Bright |
| Point Angle | 130\u00b0 |
| Web Thickness | Form A |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Point Type | Thinned Point |
