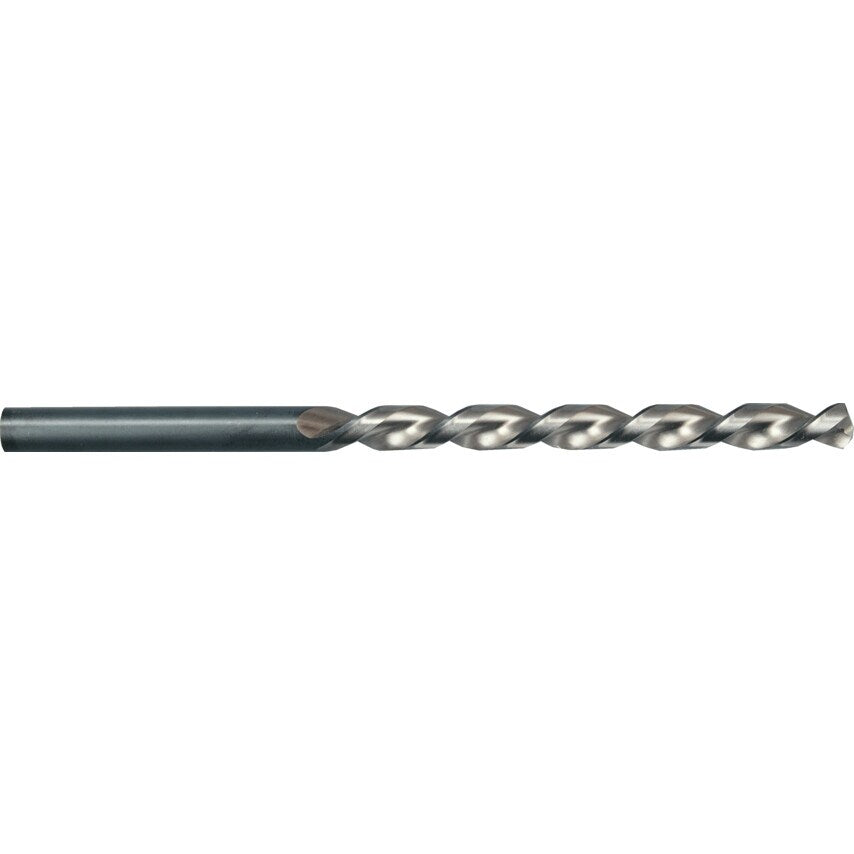

Series 535 HSSHigh Helix (Parabolic Flute) Straight Shank Long Series Drill
Inch
A robust drill for drilling deeper holes in difficult conditions when swarf congestion prevents an adequate flow of coolant from reaching the drill point. For use in steel and cast iron having a hardness of up to 1000N/mm2. Manufactured to DIN340.
| Point Angle | 130\u00b0 |
| Cutting Direction | Right Hand |
| Series | 535 |
| Number of Flutes | 2 |
| Finish/Coating | Bright |
| Number of Pieces | 1 |
| Shank Diameter Tolerance | H8 |
| Flute Length | 97mm |
| Standards Met | DIN 340 |
| MFR Part No. | 00535 006.350 |
| Drill Diameter Tolerance | H8 |
| Drill Length Type | Long Series |
| Flute Type | Spiral |
| Coolant Delivery | External |
| Helix Type | High Helix |
| Overall Length | 148mm |
| Product Type | Drills |
| Material | HSS |
| System of Measurement | Inch |
| Drill Diameter | 1/4in |
| Shank Type | Straight |
| Web Thickness | Form A |
| Flute Construction | Ground flutes |
| Point Type | Thinned Point |
