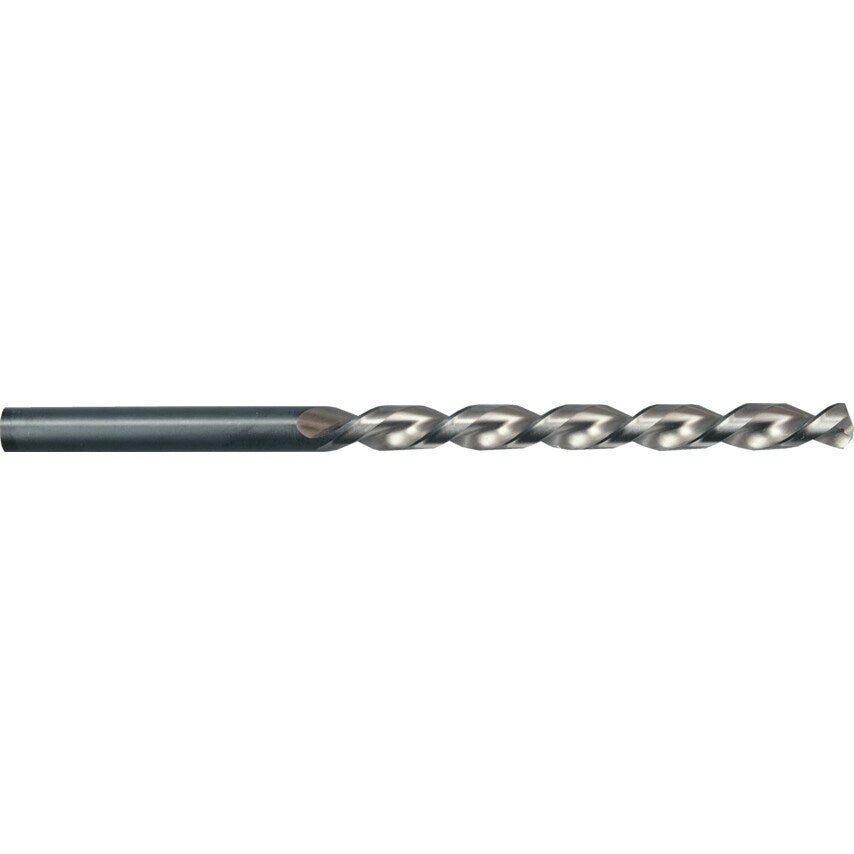

Series 535 HSSHigh Helix (Parabolic Flute) Straight Shank Long Series Drill
Metric
A robust drill for drilling deeper holes in difficult conditions when swarf congestion prevents an adequate flow of coolant from reaching the drill point. For use in steel and cast iron having a hardness of up to 1000N/mm2. Manufactured to DIN 340.
| Helix Type | High Helix |
| Flute Length | 121mm |
| Cutting Direction | Right Hand |
| System of Measurement | Metric |
| Flute Construction | Ground flutes |
| Shank Type | Straight |
| Point Type | Thinned Point |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Finish/Coating | Bright |
| Flute Type | Parabolic |
| Shank Diameter Tolerance | H8 |
| Product Type | Drills |
| Drill Length Type | Long Series |
| Material | HSS |
| Drill Diameter | 9.7mm |
| Series | 535 |
| Standards Met | DIN 340 |
| Drill Diameter Tolerance | H8 |
| Overall Length | 184mm |
| Coolant Delivery | External |
| MFR Part No. | 00535 009.700 |
| Point Angle | 130\u00b0 |
| Web Thickness | Form A |
