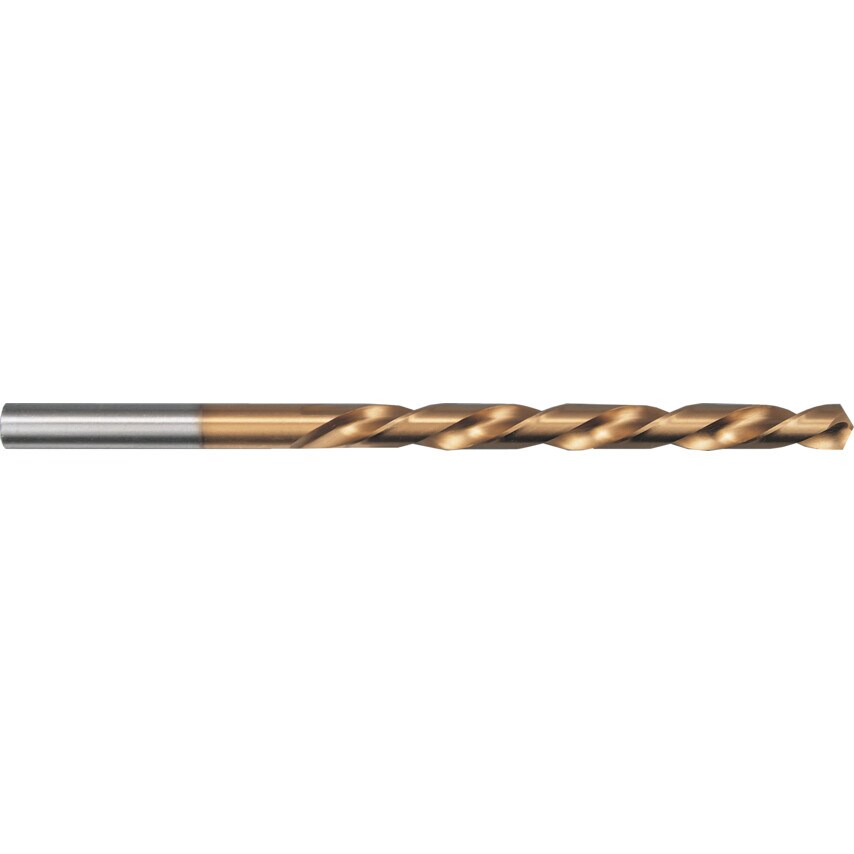

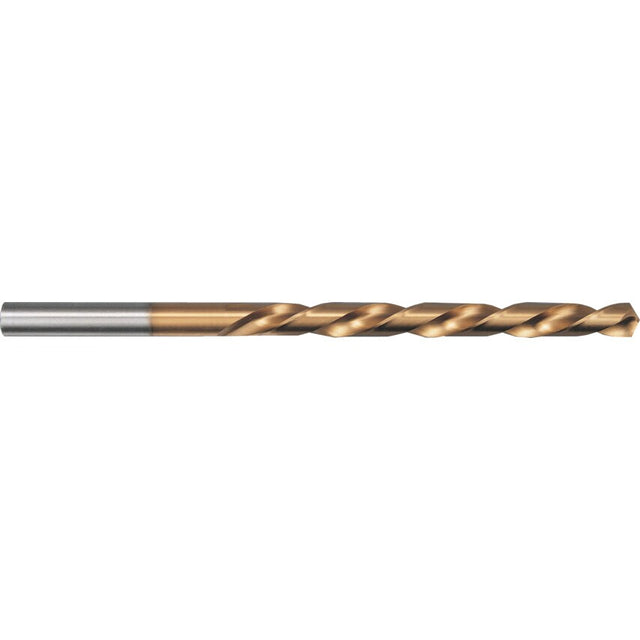

Series 667 HSS Straight Shank Long SeriesDrills
TiN Coated - Inch
For the drilling of deeper holes and for use with drill bushings. For machining alloyed and unalloyed steel, cast steel, cast iron, German silver and graphite. Type N. Manufactured to DIN340.
For all dimensional specifications please refer to our catalogue.
| MFR Part No. | 00667 001.590 |
| Number of Flutes | 2 |
| Web Thickness | Form A |
| Drill Diameter | 1/16in |
| Drill Length Type | Long Series |
| Flute Construction | Ground flutes |
| Finish/Coating | TiN |
| Standards Met | DIN 340 |
| Point Type | Standard |
| Drill Diameter Tolerance | H8 |
| Flute Type | Spiral |
| Point Angle | 118\u00b0 |
| Helix Type | Normal Helix |
| System of Measurement | Inch |
| Cutting Direction | Right Hand |
| Flute Length | 50mm |
| Overall Length | 76mm |
| Material | HSS |
| Number of Pieces | 1 |
| Coolant Delivery | External |
| Series | 667 |
| Shank Type | Straight |
