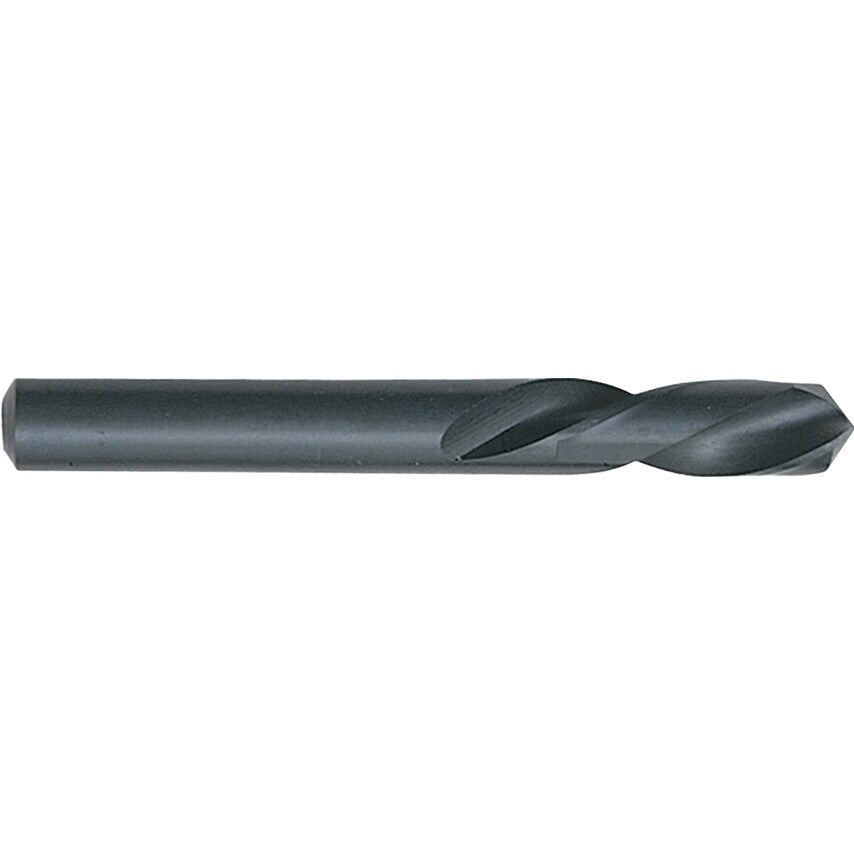

Series 223 HSS straight shank stub drills are ideally suited for portable drill applications where the shorter flute and stub length offer the extra rigidity normally associated with fixed drilling.
Features and Benefits
High speed steel construction for hardness in cutting applications
Shorter flute and stub length offer extra rigidity
Available in a range of metric sizes
Typical Applications
Portable drill applications
Standards
Manufactured to BS328:Part 1:1986/DIN1897
| Series | 223 |
| Number of Pieces | 1 |
| Finish/Coating | Steam Tempered |
| Cutting Direction | Right Hand |
| Product Type | Stub Drills |
| Standards Met | DIN 1897 |
| Drill Diameter | 6.7mm |
| Point Angle | 118\u00b0 |
| Flute Type | Spiral |
| Overall Length | 70mm |
| System of Measurement | Metric |
| Drill Diameter Tolerance | H8 |
| MFR Part No. | 00223 006.700 |
| Coolant Delivery | External |
| Material | HSS |
| Number of Flutes | 2 |
| Type | Stub Drills |
| Flute Length | 31mm |
